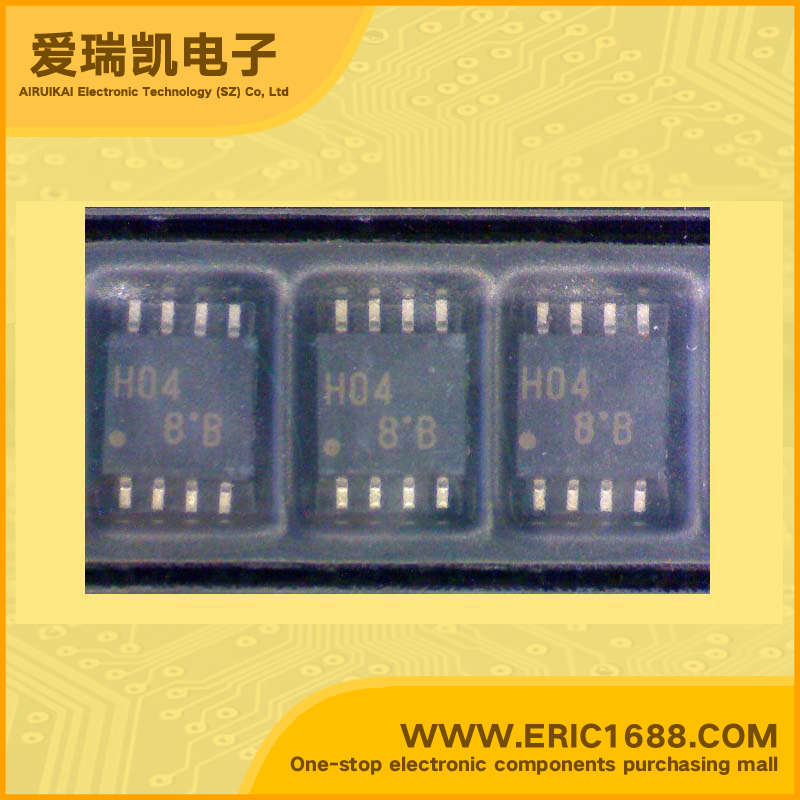

Integrated Circuit(IC) inverter TC7WH04FU SM8 marking H04

Hot selling goods

Product description
逻辑类型
Logic Type
反相器 Inverter
电路数
Number of Circuits
3
输入数
Number of Inputs
3
电源电压Vcc
Voltage - Supply
2V~5.5V
静态电流Iq
Current - Quiescent (Max)
2µA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.5V~1.65V
高逻辑电平
Logic Level - High
1.5v~3.85v
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
7.5ns @ 4.5V ~ 5.5V,50pF
Description & ApplicationsTriple Inverter ;High-speed :tpd = 3.8ns (Typ.) at VCC = 5 V • Low power dissipation :ICC=2μA(Max.) at Ta=25°C • High noise immunity :VNIH=VNIL=28%VCC(Min.) • Operation voltage range :VCC(opr.)=2~5.5V • 5.5-V Tolerant inputs.
描述与应用三电平逆变器;高速:TPD=3.8ns电源VCC= 5 V(典型值) •低功耗:ICC=2μA(最大值)在Ta= 25°C •高噪声,免疫力:VNIH= VNIL=28%VCC(最小) •工作电压范围:VCC(opr.)=2〜5.5V •5.5-V宽容的投入。
