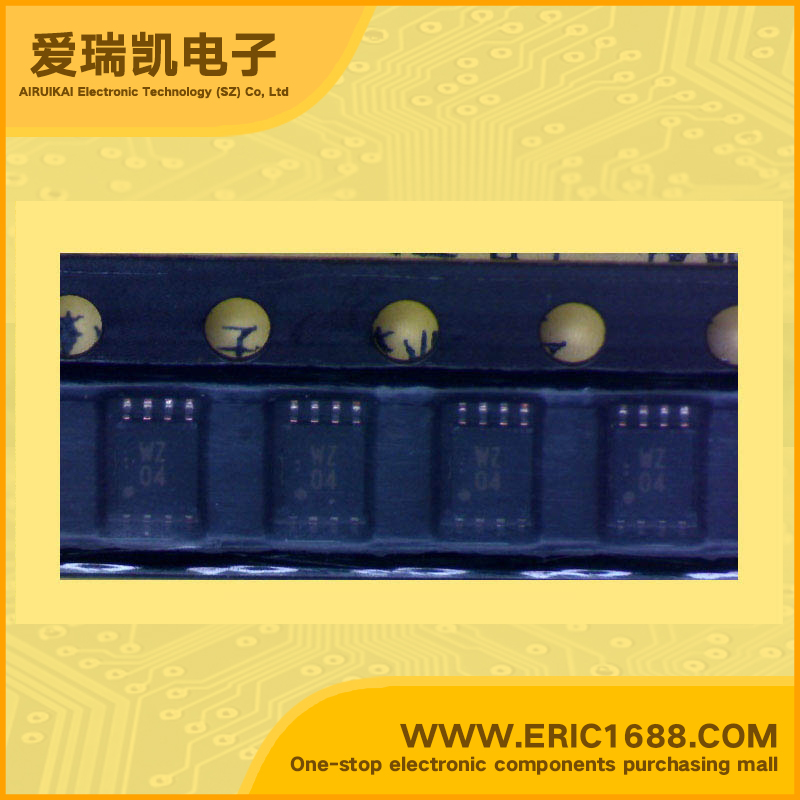

Integrated Circuit（IC） inverter TC7WZ04FK US8 marking WZ04
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 1.65V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1µA |
| 输出高，低电平电流 Current - Output High, Low | -24mA,24mA |
| 低逻辑电平 Logic Level - Low | 0.25v~0.3v |
| 高逻辑电平 Logic Level - High | 0.7v~0.75v |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 2.4ns @ 5V，50pF |
| Description & Applications | Triple Inverter ;High output drive: ±24 mA (min) @VCC = 3 V Super high speed operation: tpd 2.3 ns (typ.) @VCC = 5 V, 50 pF Operation voltage range: VCC (opr) = 1.65~5.5 V Latch-up performance: ±500 mA or more ESD performance: ±200 V or more (JEITA) ±2000 V or more (MIL) Power down protection is provided on all inputs and outputs. Matches the performance of TC74LCX series when operated at 3.3 V VCC. |
| 描述与应用 | 三电平逆变器;“高输出驱动器：±24 mA（分钟）@ VCC=3 V 超高速运转：TPD2.3纳秒（典型值）@ VCC = 5 V， 50 pF的 工作电压范围：VCC（OPR）=1.65〜5.5 V 闭锁性能：±500 mA或更大 ESD性能：±200 V或以上（JEITA） ±2000 V以上（MIL） 掉电保护提供所有输入和输出。 操作时的性能相匹配的TC74LCX系列 在3.3 V VCC。 “ |
