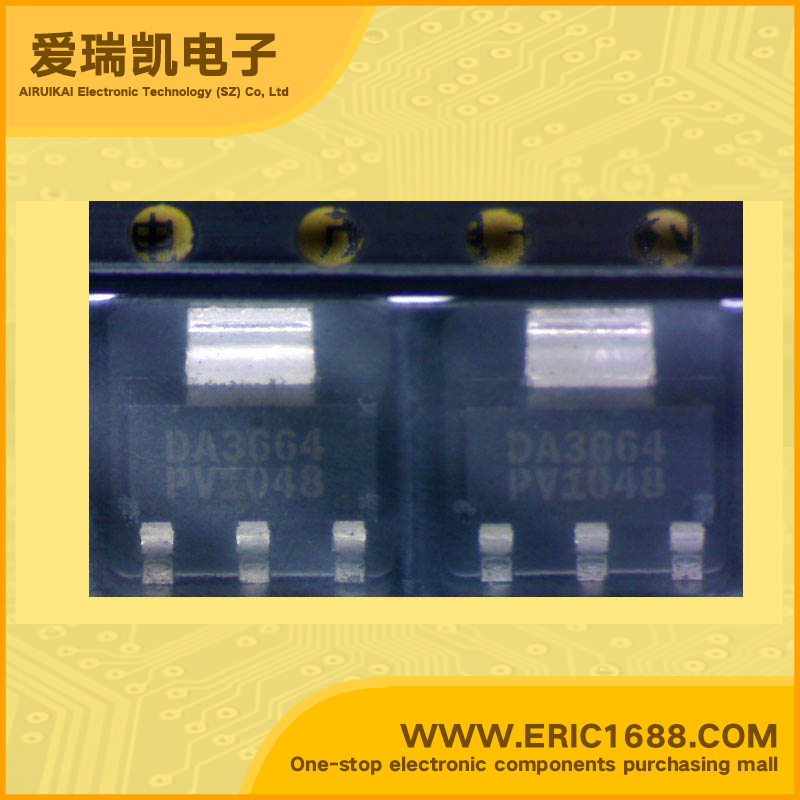

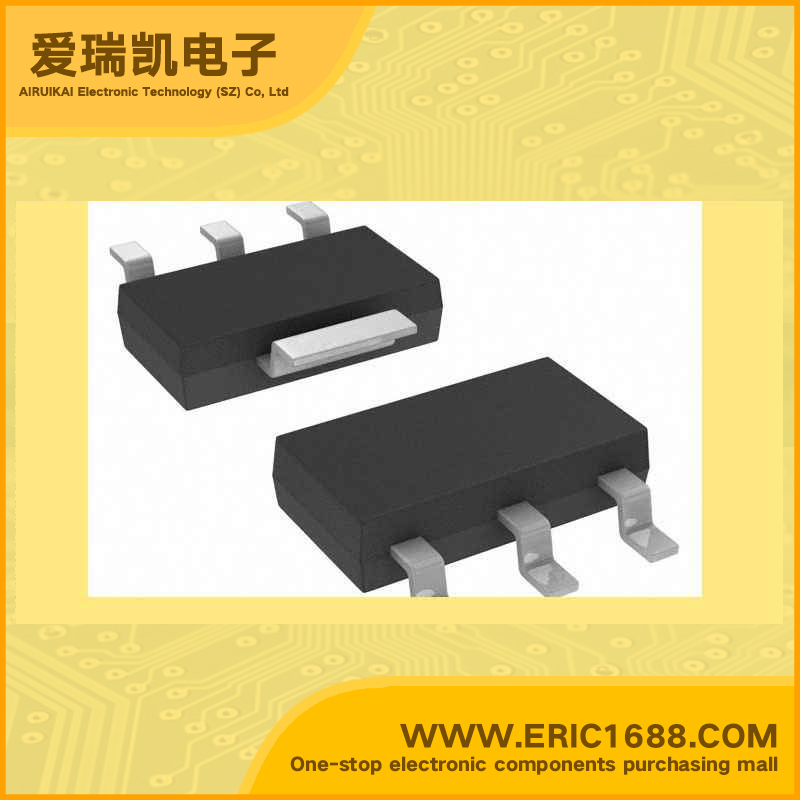

TDA3664 LDO Voltage Regulator 5V 180mV/0.18V With Enable Pin SOT-223 marking DA3664 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 45V |
| 输出电压VOUT Voltage - Output | 5V |
| 输出电流Io Current - Output | 50mA |
| 最大压降VDO Voltage - Dropout | 180mV/0.18V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | •Very low dropout voltage/quiescent current 5 V voltage regulator • Fixed 5 V, 100 mA regulator • Supply voltage range up to +33 V (45 V) • Very low quiescent current (typically 15 µA) • Very low dropout voltage • High ripple rejection • Very high stability – Electrolytic capacitors: ESR (Equivalent Series resistance) < 38 Ω at IREG ≤ 25 mA |
| 描述与应用 | •非常低的压差电压/静态电流5 V稳压器 •固定5伏，100毫安稳压器 •电源电压范围为+33 V（45 V） •非常低的静态电流（典型值15μA） •非常低的压差电压 •高纹波抑制 •非常高的稳定性 - 电解电容器的ESR（等效串联 IREG<38Ω电阻）≤25毫安 |
