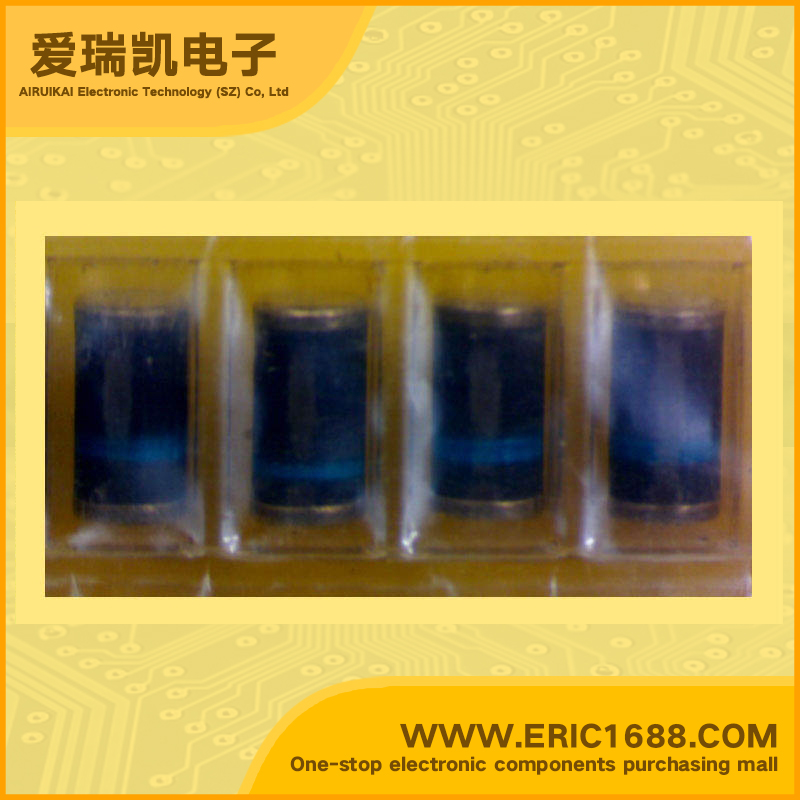

TGL41-8.2 Zener Diodes 8.2V 1W DO213AB-8.2v marking Transient Voltage Suppressors
| 额定齐纳电压Vz(V)Zener Voltage 最小 min. | 7.38V |
| 平均 Typ. | 8.2V |
| 最大 max. | 9.02V |
| 误差 Tolerance | |
| 最大齐纳阻抗Zz(Ω) Dynamic Impedance | |
| 最大反向漏电流IR(uA) Reverse Current | 200uA |
| 最大耗散功率Pd Power dissipation | 1W |
| Description & Applications | • Glass passivated junction • Excellent clamping capability • Low incremental surge resistance • Very fast response time • 400W peak pulse capability with a 10/1000µs waveform, repetition rate (duty cycle): 0.01% (200W above 91V) • For devices with V(BR)≥10V, ID are typically less than 1.0µA • High temperature soldering guaranteed: 250°C/10 seconds at terminals • Available in unidirectional only • Transient Voltage Suppressors |
| 描述与应用 | •玻璃钝化结 •出色的钳位能力 •低增量浪涌电阻 •非常快的响应时间 •400W峰值脉冲功率与一个10/1000μS波形， 重复率（占空比）：0.01％（200W91V以上） •对于设备与V（BR）≥10V，ID通常小于1.0μA •高温焊接保证：250°C/10秒钟码头 •仅在单向 •瞬态电压抑制器 |
