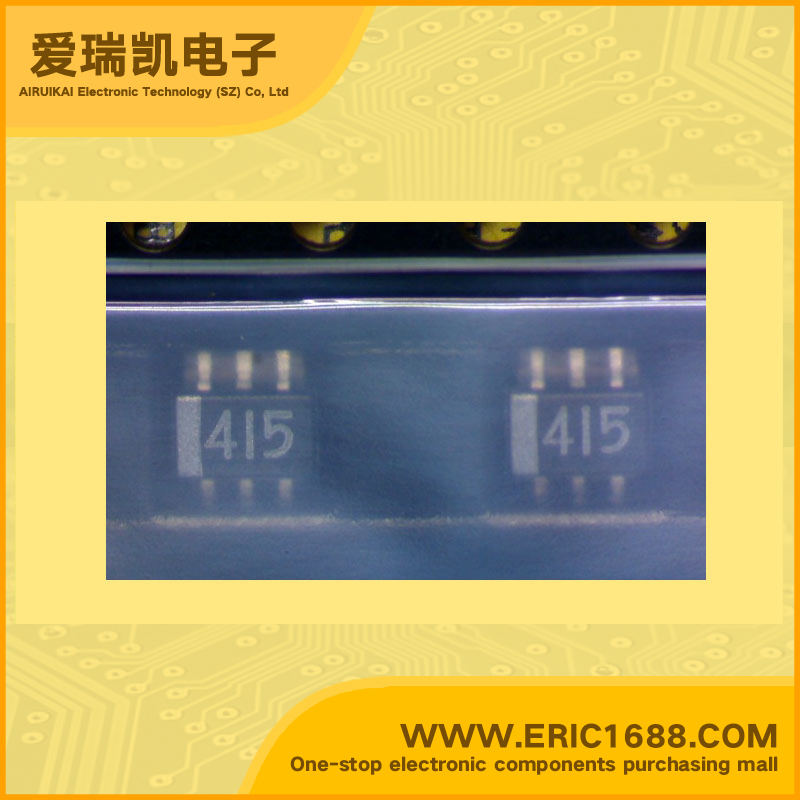

Audio Amplifier TK10415MTL SOT23L-6 marking 415
| 频率 Frequency | 2 通道（立体声） 2-Channel (Stereo) |
| P1dB | |
| 增益 Gain | 6V |
| 噪声系数 Noise Figure | 静音，热保护 Depop, Differential Inputs, Shutdown, Thermal Protection |
| RF 类型 RF Type | •CERAMIC SPEAKER DRIVE AMPLIFIER •Wide Operating Voltage Range (VCC = 1.8 to 5.5 V) •Very Low Supply Current (ICC = 1.8 mA @ VCC= 2.4 V) •Very Low Standby Current (ISTBY = 0.1 μA) •Very Large Output Voltage (VOUT(MAX) = 1.7 Vrms @ VCC = 2.4 V, RL = 620 Ω) •Very Small Total Harmonic Distortion (THD = 0.1 % @ VOUT = 0.8 Vrms) • Needs No Output Coupling Capacitor |
| 电源电压 Voltage - Supply | 陶瓷扬声器驱动放大器 •宽工作电压范围（VCC = 1.8至5.5 V） •极低的电源电流（ICC=1.8毫安@ VCC=2.4 V） •极低的待机电流（ISTBY= 0.1μA） •非常大的输出电压（VOUT（MAX）=1.7 Vrms的@ VCC=2.4 V，RL= 620Ω） •非常小的总谐波失真（THD= 0.1％ @ VOUT= 0.8 VRMS） •不需要输出耦合电容 |
| 电源电流 Current - Supply | |
| 测试频率 Test Frequency | |
| Description & Applications | |
| 描述与应用 |
