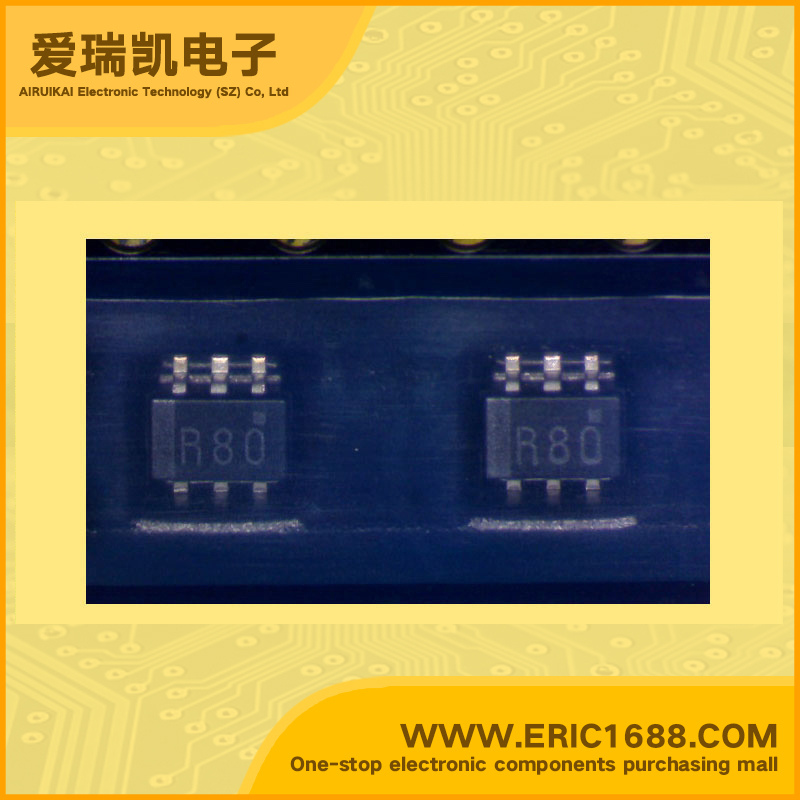

TK11280CMCL LDO Voltage Regulator 8V 235mV/0.235V With Enable Pin SOT23L-6 marking R80 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 16V |
| 输出电压VOUT Voltage - Output | 8V |
| 输出电流Io Current - Output | 300mA/0.3A |
| 最大压降VDO Voltage - Dropout | 235mV/0.235V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 600mW/0.6W |
| Description & Applications | •stability stable high CL = 0.1μF. The capacitor, such as any type of available output voltage (2.5V ≦) and high output voltage accuracy (± 1.5% or ± 50mV of) •Excellent ripple rejection (1kHz at 80dB)·Wide operating voltage range (1.8V ~ 14.5V) • Large 300mA480 mA peak output current • When the output short circuit current limit • Prevent overheating sensor and low noise applications - Chillon is • ON / OFF |
| 描述与应用 | •·稳定的稳定性的CL=0.1μF很高。在电容器，如任何类型的可用的输出电压（2.5V≦）和高输出电压精度（±1.5％或±50mV的） •纹波抑制很棒（1kHz时80dB） ·宽工作电压范围（1.8V〜14.5V） •大输出电流300mA480毫安的峰值 •当输出短路电流限制 •防止过热传感器和低噪声应用领域 - 西庸是 •开/关控制与输出（高/开启）。关在小的输入电流（PA级）。 反向偏置保护电路 |
