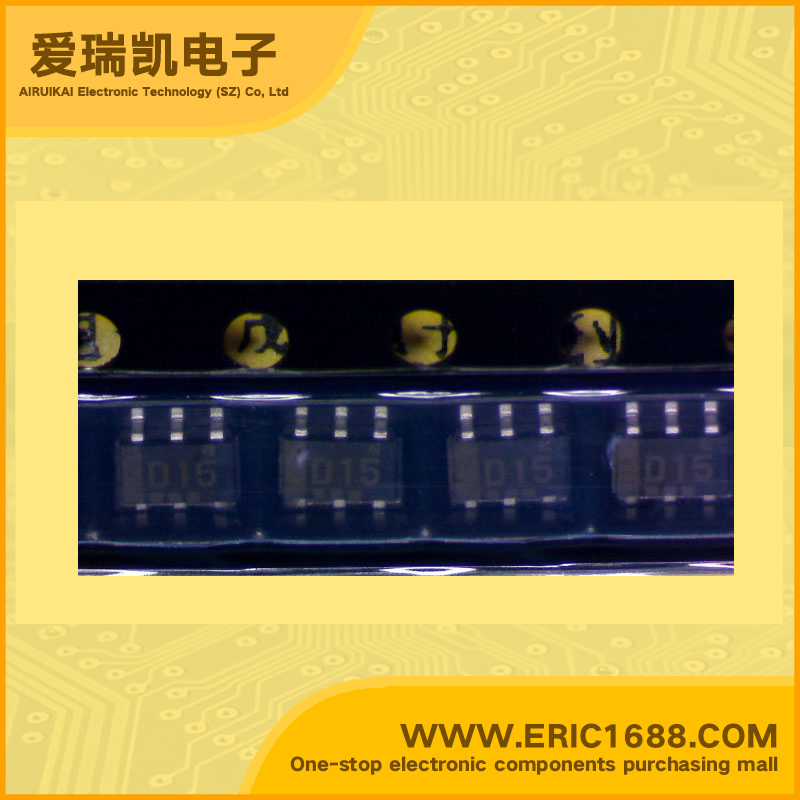

TK11815MTB DC/DC Step-Up Converter SOT-163/SOT23-6 marking D15 STEP-UP Switching Regulator

Model：TK11815MTB
Mark / screen / code / typing：D15
Manufacturer：
Date Code：05+ 05+
Package：SOT-163/SOT23-6
Standard Package：3000
Min Order：10

Hot selling goods

Product description

控制方式 MODE
输入电压VIN Input Voltage	2～15V
输出电压VOUT Output Voltage
输出电流IOUT Output Current	25mA
震荡频率FOSC Oscillation Frequency	200KHz
内置FET Built-in FET
Description & Applications	• 動作電圧範囲：2.0V～15V • 外部スイッチTr駆動電流：25mA • インダクタ電流制限値調整可 • 出力電圧設定可（最大出力はトランジスタ、ダイオードの耐圧による） • 発振回路動作周波数：200kHz max.
描述与应用	•工作电压范围：2.0V〜15V •外部开关风帆驱动电流，电流：25mA •电感电流限制可调 •输出电压设定（最大输出电压的晶体管，二极管据） •振荡器工作频率最大为200kHz
