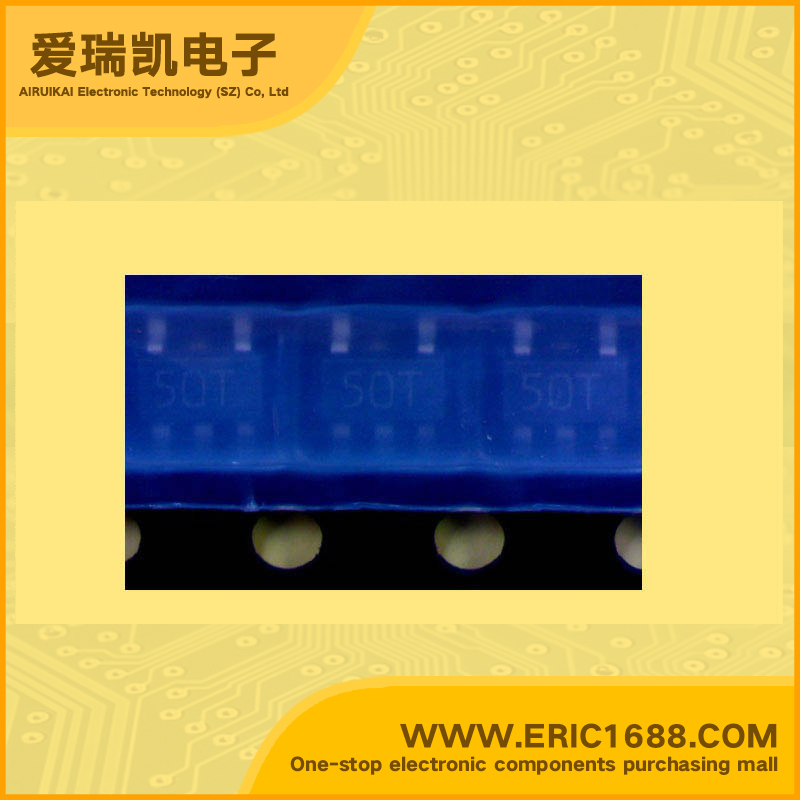

TK71450SCL LDO Voltage Regulator 5V 180mV/0.18V SOT-153/SOT23-5 marking 50T Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | -0.4~16V |
| 输出电压VOUT Voltage - Output | 5V |
| 输出电流Io Current - Output | 100mA/0.1A |
| 最大压降VDO Voltage - Dropout | 180mV/0.18V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 500mW/0.5W |
| Description & Applications | •LDO Regulator with base terminal for Current Boost •An external transistor can be used.(Base current Typ10mA) •On/Off control available (High ON). •No input current at Off mode •Excellent output stability (CL≧0.022µF,Iout≧2mA) •High ripple rejection (-70dB at 1kHz) •100mA load current guarantee •Output voltage available from 1.3 to 5.0V (0.1V step). |
| 描述与应用 | •LDO稳压器具有电流升压 •外部晶体管都可以使用。（基本电流Typ10mA） •开/关控制（高） •无输入电流在关断模式 •出色的输出稳定性（CL≧0.022μF，IOUT≧2毫安） •高纹波抑制（1kHz时为70dB） •负载电流100mA •输出电压可从1.3〜5.0V |
