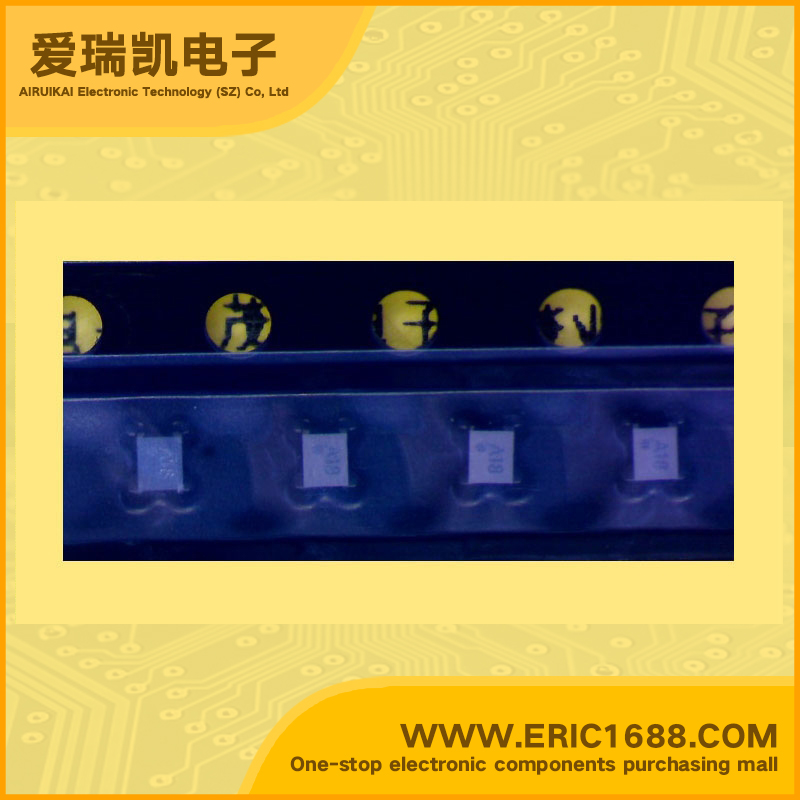

TK71818CB LDO Voltage Regulator 1.8V 180mV/0.18V With Enable Pin FC-5 marking A18 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | -0.4~16V |
| 输出电压VOUT Voltage - Output | 1.8V |
| 输出电流Io Current - Output | 200mA/0.2A |
| 最大压降VDO Voltage - Dropout | 180mV/0.18V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 450mW/0.45W |
| Description & Applications | •LDO REGULATOR WITH ON/OFF SWITCH •Very Small Size : 5 Bump Flip Chip (FC-5) •Active High On/Off Control •Very Good Stability : Ceramic capacitor can be used. : COUT≥0.1µF at VOUT≥2.5V and IOUT≥0.5mA •High Precision Output Voltage±1.5% or ±50mV (TA=TJ=25°C) •Excellent Ripple Rejection Ratio : -80dB at 1kHz •Output Current : 200mA (peak 320mA) •Very Low Dropout Voltage : 75mV at IOUT=50mA •Wide Operating Voltage Range : 2.1V∼14V •Very Low Noise with Noise Bypass pin •Short Circuit Protection (Over Current Protection) •internal Thermal Shutdown (Over Heat Protection) •Reverse Bias Protection |
| 描述与应用 | •LDO稳压器具有ON/ OFF开关 •非常小尺寸：5凸点倒装芯片（FC-5） •高电平开/关控制 •很好的稳定性：可使用陶瓷电容器。 COUT≥0.1μF在VOUT≥2.5V，IOUT≥0.5毫安 •高精度输出电压±1.5％或±50mV的（TA= TJ=25°C） •出色的纹波抑制比：1kHz时80dB •输出电流：200mA（峰值320毫安） •非常低压差电压的75mV IOUT=50毫安时 •宽工作电压范围：2.1V〜14V •非常低的噪声，噪声旁路引脚 •短路保护（过电流保护） •内部热关断（过温度保护） •反向偏压保护 |
