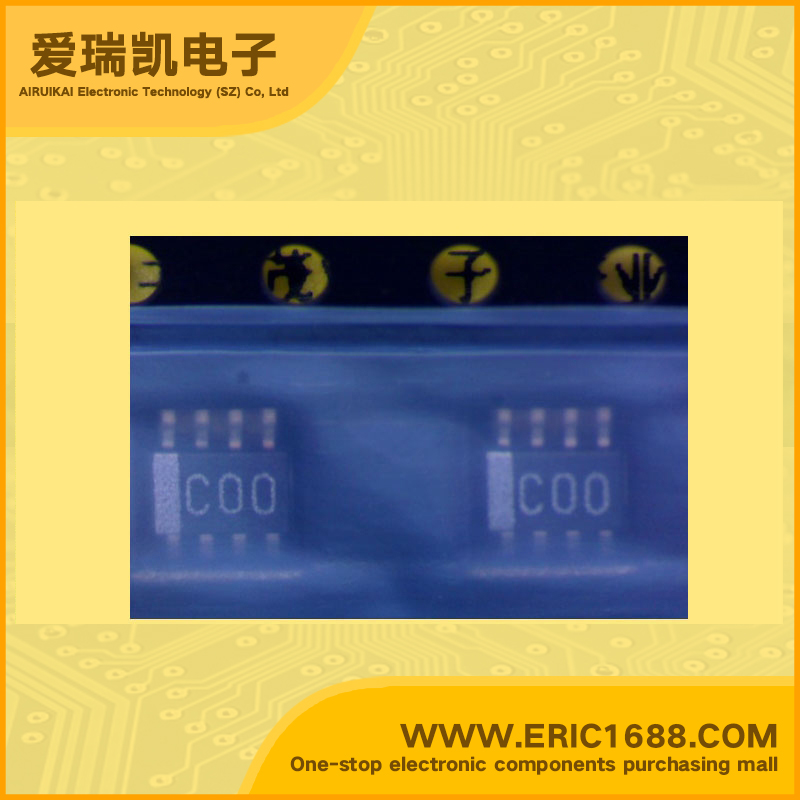

TK73200MCL LDO Voltage Regulator 2~12V With Enable Pin SOT23L-8 marking C00 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 19V |
| 输出电压VOUT Voltage - Output | 2~12V |
| 输出电流Io Current - Output | |
| 最大压降VDO Voltage - Dropout | |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 600mW/0.6W |
| Description & Applications | •ADJUSTABLE LOW DROPOUT REGULATOR •Up to 5 A Output Current Capability with External PNP Transistor •Internal Short Circuit Protection •Excellent Load Regulation •CMOS/TTL-Compatible On/Off Switch • Internal Reverse Bias Current Protection Switch •Internal Thermal Shutdown •Wide Adjustable Output Voltage Range (2.0 V to 12.0 V) •Continuous and Pulsed Current Modes |
| 描述与应用 | •可调低压差稳压器 •高达5 A输出电流能力与外部PNP晶体管 •内部短路保护 •出色的负载调节 •CMOS/ TTL兼容的On / Off开关 •内部反向偏置电流保护开关 •内部热关断 •可调节的宽输出电压范围（2.0 V至12.0 V） •连续和脉冲电流模式 |
