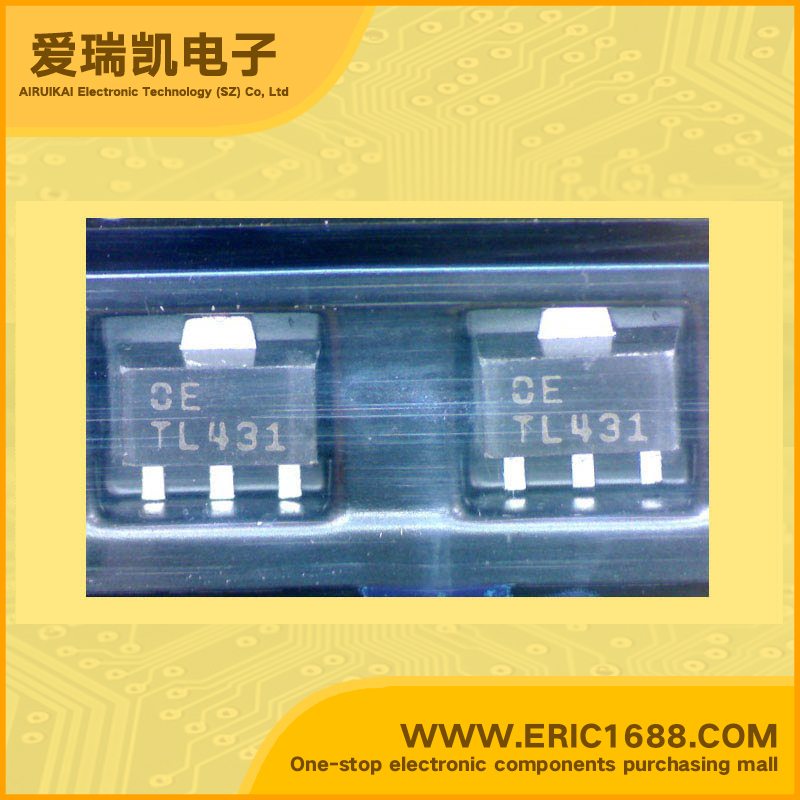

TL431 Voltage Reference Power Management IC 2.495 V ~ 36 V SOT-89 marking 431 Programmable Precision Reference Programmable output voltage
| 参考类型 Reference Type | 旁路，可调节，精度 Shunt, Adjustable, Precision |
| 输出电压Vo Voltage - Output | 2.495 V ~ 36 V |
| 误差 Tolerance | ±1% |
| 温度系数 Temperature Coefficient | 50ppm/°C |
| 输入电压 Voltage - Input | 高达 36V |
| 阴极电流 Current - Cathode | 700µA |
| 输出电流IOUT Current - Output | 100mA/0.1A |
| Description & Applications | FEATURES • PROGRAMMABLE PRECISION REFERENCE • Programmable output Voltage to 36V. • Low dynamic output impedance 0.2Ω. • Sink current capability of 1.0 to 100mA. • Equivalent full-range temperature coefficient of 50ppm/ °C typical for operation over full rated operating temperature range. |
| 描述与应用 | 特点 •可编程精密参考 •可编程输出电压为36V。 •低动态输出阻抗0.2Ω。 •灌电流能力为1.0至100mA。 •等效满量程温度系数为50ppm/°C 典型的操作在整个额定工作温度范围。 |
