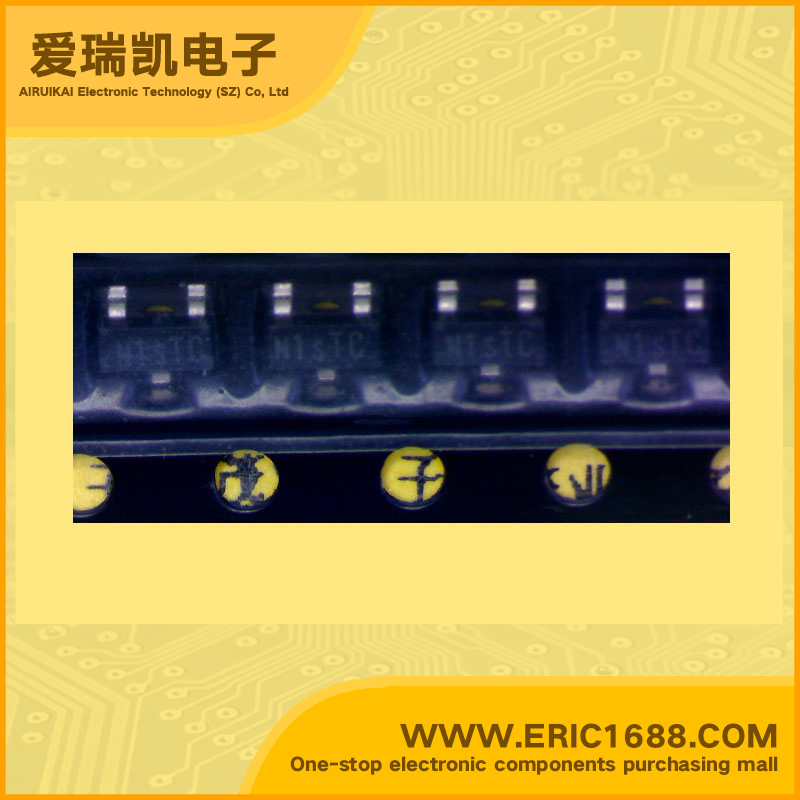

TN0201T MOSFET N-Channel 20V 390mA/0.39A SOT-23/SC-59 marking N1 fast switch/low on-resistance

Model：TN0201T
Mark / screen / code / typing：N1
Manufacturer：
Date Code： 05+
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	20V
最大栅源极电压Vgs(±) Gate-Source Voltage	20V
最大漏极电流Id Drain Current	390mA/0.39A
源漏极导通电阻ΩRds DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance	0.8Ω/Ohm @100mA,4V
开启电压Vgs（th） Gate-Source Threshold Voltage	1.0-3.0V
耗散功率Pd Power Dissipation	350mW/0.35W
Description & Applications	Low On-Resistance: 0.75 Low Threshold: <1.75 V Low Input Capacitance: 65 pF Fast Switching Speed: 15 ns Low Input and Output Leakage
描述与应用	低导通电阻：0.75？低阈值：<1.75 V 低输入电容：65 pF的开关速度快：15纳秒低输入和输出泄漏
