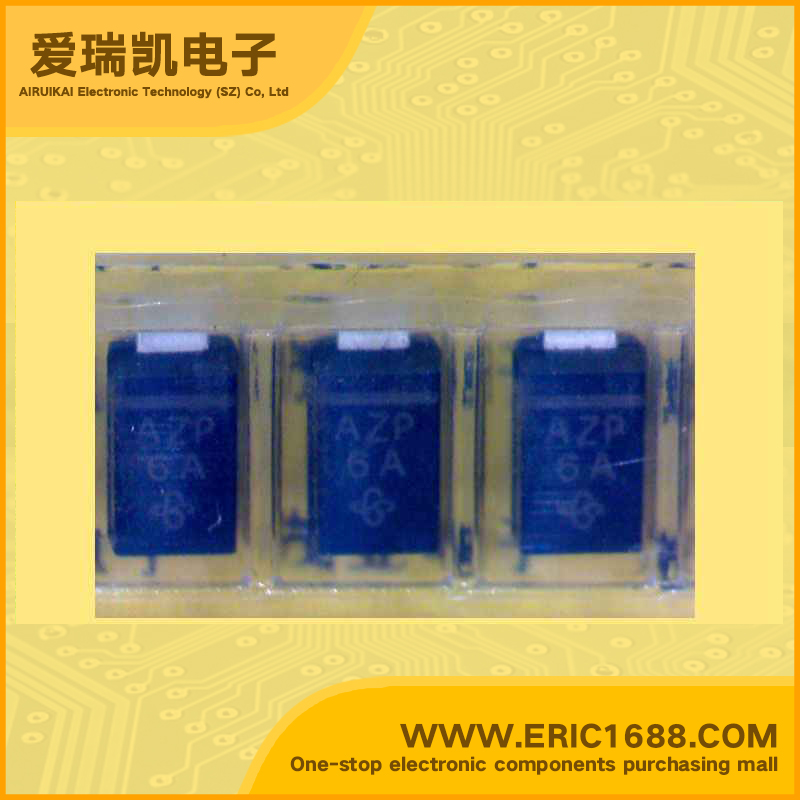

TPSMA16A TVS/ESD 13.6V 17.8A DO-214AC/SMA-16v marking AZP
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 13.6V |
| 反向击穿电压VBR Breakdown Voltage | 16V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 400W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 17.8A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Surface Mount Automotive Transient Voltage Suppressors；Specification Features: • Vishay Semiconductors formerly General Semiconductor • Surface Mount Automotive Transient Voltage Suppressors • Plastic package has Underwriters Laboratory Flammability Classification 94V-0 • Ideal for automated placement • Low profile package • Built-in strain relief • Exclusive patented PAR®oxide passivated chip construction • 400W peak pulse power capability with a 10/1000ms waveform, repetition rate (duty cycle): 0.01% • Excellent clamping capability • Low incremental surge resistance • Very fast response time • For devices with V(BR) ≥ 10V ID are typically less than 1.0mA at TA = 150°C • Designed for under the hood surface mount applications • High temperature soldering:250°C/10 seconds at terminals |
| 描述与应用 | 表面贴装汽车 瞬态电压抑制器;规格特点： •威世半导体原通用半导体 •表面贴装汽车瞬态电压抑制器 •塑料包装有保险商实验室可燃性分类94V-0 •适合自动放置 •薄型包装 •内置应变救灾 •独家专利的PAR®氧化物钝化建设的 •400W峰值脉冲功率能力与一个的10/1000ms波形，重复率（占空比）：0.01％ •出色的钳位能力 •低增量浪涌电阻 •非常快的响应时间 •设备V（BR）≥10V ID通常小于1.0mA在TA= 150°C •专为引擎盖下的表面贴装 应用程序 •高温焊接：250°C/10秒钟码头 |
