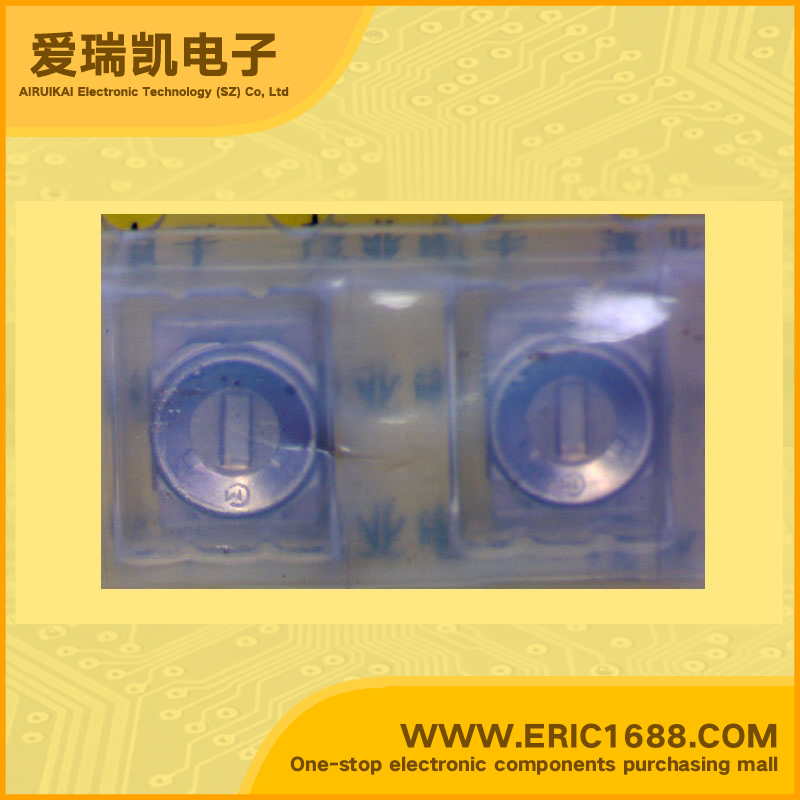

Trimmers/Variable Capacitor TZW4Z1R5A001R00 0.4-1.5pf SOT
| 电容范围 Capacitance Range | 0.4-1.5pf |
| 调节类型 Adjustment Type | 顶部调节 Top Adjustment |
| 额定电压 Voltage - Rated | 25V |
| Description & Applications | Features 1. To meet high power application due to withstanding voltage 550Vdc. 2. Extremely high self resonant frequency. (More than 3GHz at 1.5pF setting) 3. Typical application: Impedance matching for Cellular Base Station. 4. High Q value in more than VHF, UHF and Microwave bands. (More than 200 in 500MHz, C max.) 5. Available for pick and place machine. Possible thinner design due to 2.6mm low profile. 6. Non electrical contact construction (rotor as middle electrode) provides high reliability. 7. Compact size due to 4.2(W)x5.2(L)x2.6max.(H)mm. Applications 1. Transmitting power amplifier for Cellular Base Station 2. Transmitting amplifier for PHS Base Station 3. High frequency electric circuit 4. High power radio transmission 5. Transponder amplifier for cable TV |
| 描述与应用 | 特点 1。为了满足高功率应用，由于承受 电压550VDC。 2。自谐振频率极高。 （3GHz以上1.5PF设置） 3。典型应用：蜂窝阻抗匹配 基站。 4。高Q值超过VHF，UHF和微波频段。 （超过200500MHz的，C）。 5。可用于取放机。可能 更薄的设计由于低调2.6毫米。 6。非电接触建设 （转子中等电极）提供高可靠性。 7。由于紧凑的尺寸为4.2（W）X5.2（L）x2.6max（高）mm。 应用 1。蜂窝基站发射功率放大器 2。 PHS基站发射放大器 3。高频电子电路 4。高功率无线电发射 5。转发有线电视放大器 |
