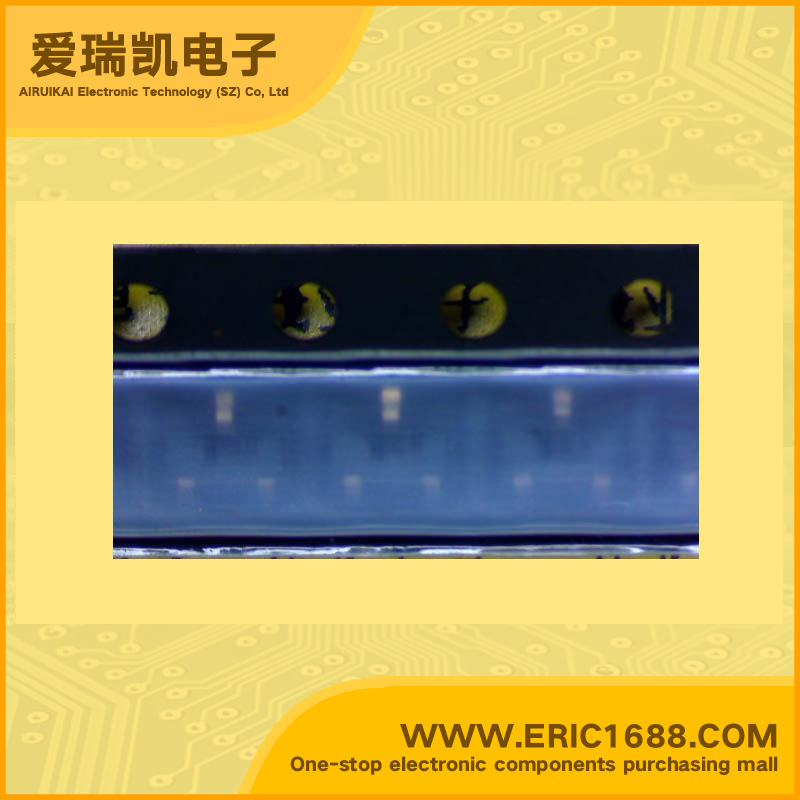

UFMMT491TA NPN Transistors(BJT) 80V 1A 150MHz 100~300 500mV/0.5V SOT-23/SC-59 marking 491
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 80V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 60V |
| 集电极连续输出电流IC Collector Current(IC) | 1A |
| 截止频率fT Transtion Frequency(fT) | 150MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率Pc Power Dissipation | 500mW/0.5W |
| Description & Applications | SOT23 NPN SILICON PLANAR MEDIUM POWER TRANSISTOR Low equivalent on-resistance; RCE(sat) 210mΩ at 1A |
| 描述与应用 | SOT23 NPN硅平面 中等功率晶体管 低等效导通电阻; RCE（饱和）在1A 210mΩ |
