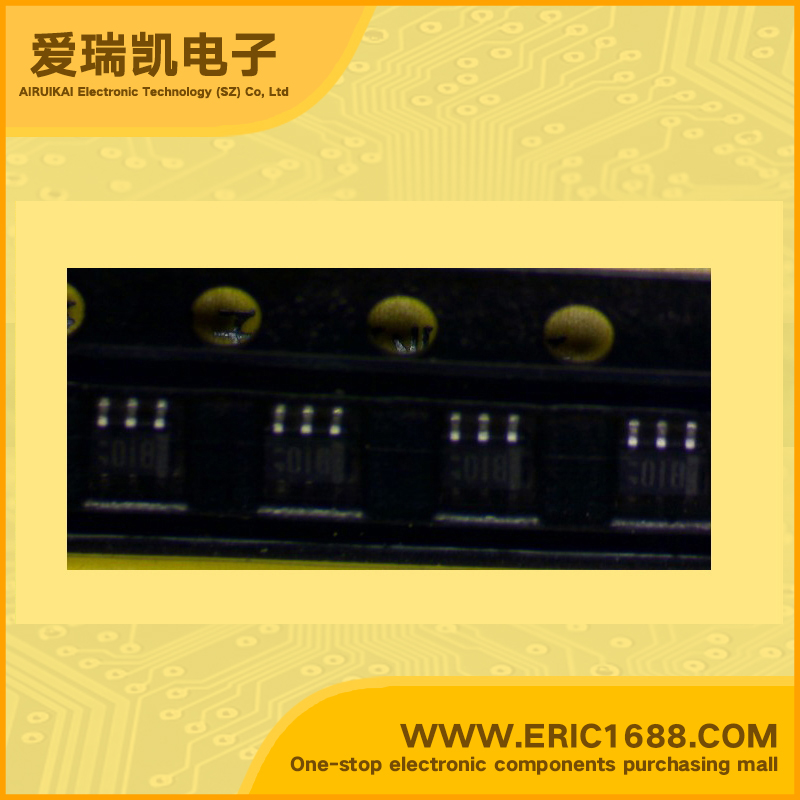

UMB10 PNP+PNP Complex Bipolar Digital Transistor -50V -0.1A R1=2.2KΩ R2=47KΩ SOT-363/UMT6/SC-88/SC70-6 marking B10 switching inverting interface driver circuit

Hot selling goods

Product description

V(BR) CBO

Collector-Base Voltage

  -50V

V(BR) CEO

Collector-Emitter Voltage

  -50V
Collector Current(IC)  -100MA/-0.1A
 Input Resistance(R1)  2.2KΩ
Base-Emitter Resistance(R2)  47KΩ
Base-Emitter Input Resistance Ratio (R1/R2)  0.047
DC Current Gain(hFE)
Transtion Frequency(fT)  250MHZ
Power Dissipation (Pd)  150MW/0.15W
Description & Applications  General purpose(dual digital transistors)
Features
1) Two DTA123J chips in a  UMT package.
2) Mounting possible with EMT3 or UMT3 or SMT3 automatic mounting machines.
3) Transistor elements are independent, eliminating interference.
4) Mounting cost and area can be cut in half.
Structure
Epitaxial planar type
PNP silicon transistor (Built-in resistor type)
