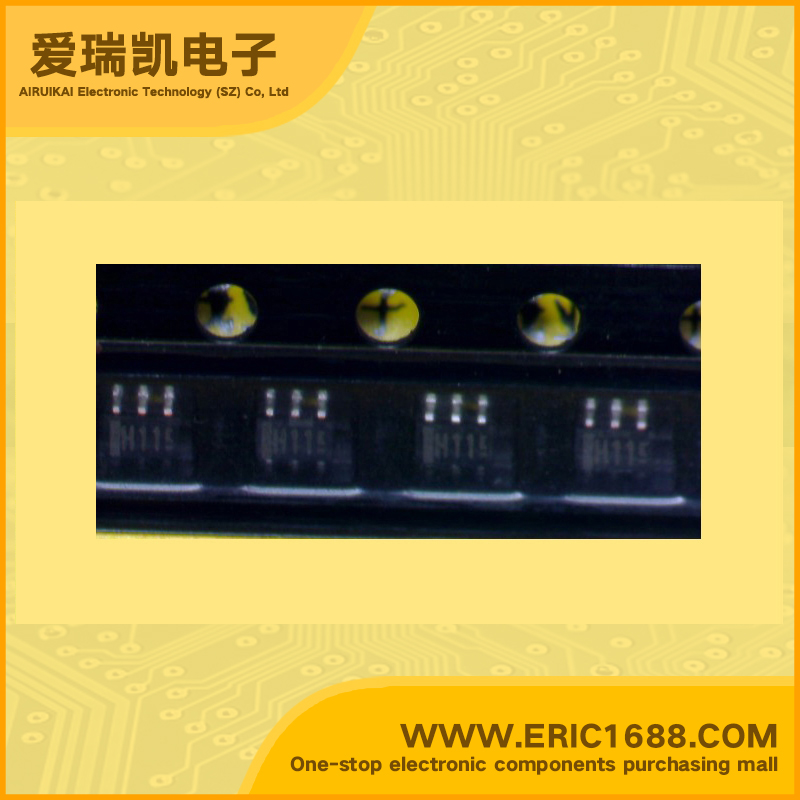

UMH11N NPN+NPN Complex Bipolar Digital Transistor 50V 50mA R1=R2=10KΩ 150mW/0.15W SOT-363/UMT6/SC-88/SC70-6 marking H11 switching inverting interface driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 50mA |
| Q1基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| Q1电阻比(R1/R2) Q1 Resistance Ratio | 1 |
| Q2基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| Q2电阻比(R1/R2) Q2 Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | Features •NPN 100mA 50V Complex Digital Transistors (Bias Resistor Built-in Transistors) •Built-In Biasing Resistors, R1= R2= 10kW. •Two DTC114E chips in one package. •Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit). •The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing lInner circuit of the input. They also have the advantage of completely eliminating parasitic effects. •Only the on/off conditions need to be set for operation, making the circuit design easy. •Lead Free/RoHS Compliant. |
| 描述与应用 | 特点 •NPN100毫安50V复杂的数字晶体管（内置偏置电阻晶体管） •内置偏置电阻R1= R2=10KW。 •两个DTC114E芯片在一个封装中。 •内置启用偏置电阻器的逆变器电路的配置，而无需连接外部输入电阻（见内部电路）。 •偏置电阻组成的薄膜电阻完全隔离，允许负偏置内衬电路输入的。它们还具有的优点是完全消除了寄生效应。 •只有开/关条件需要设置操作，使得电路的设计容易。 •无铅/ RoHS标准。 |
