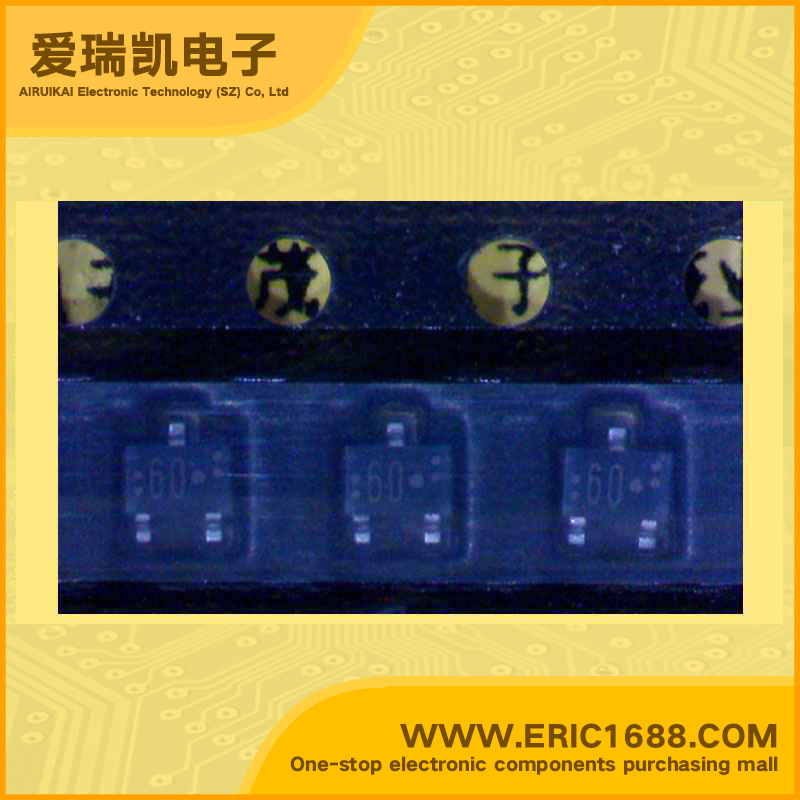

UN511F PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 30 0.15W/150mW SOT-323/SC-70 marking 6O switch inverter interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)-50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)-50V
集电极连续输出电流IC Collector Current(IC)-100mA/-0.1A
基极输入电阻R1 Input Resistance(R1)4.7KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)10KΩ/Ohm
电阻比(R1/R2) Resistance Ratio0.047
直流电流增益hFE DC Current Gain(hFE)30
截止频率fT Transtion Frequency(fT)80MHz
耗散功率Pc Power Dissipation0.15W/150mW
Description & ApplicationsFeatures •Silicon PNP epitaxial planer transistor •Costs can be reduced through downsizing of the equipment and reduction of the number of parts. •S-Mini type package, allowing downsizing of the equipment and automatic insertion through tape packing and magazine packing
描述与应用特点 •硅PNP外延刨刀晶体管的 •成本可降低通过减员设备和减少部件的数量。 •S-迷你型包装,使瘦身的设备和通过自动插入磁带包装盒包装
