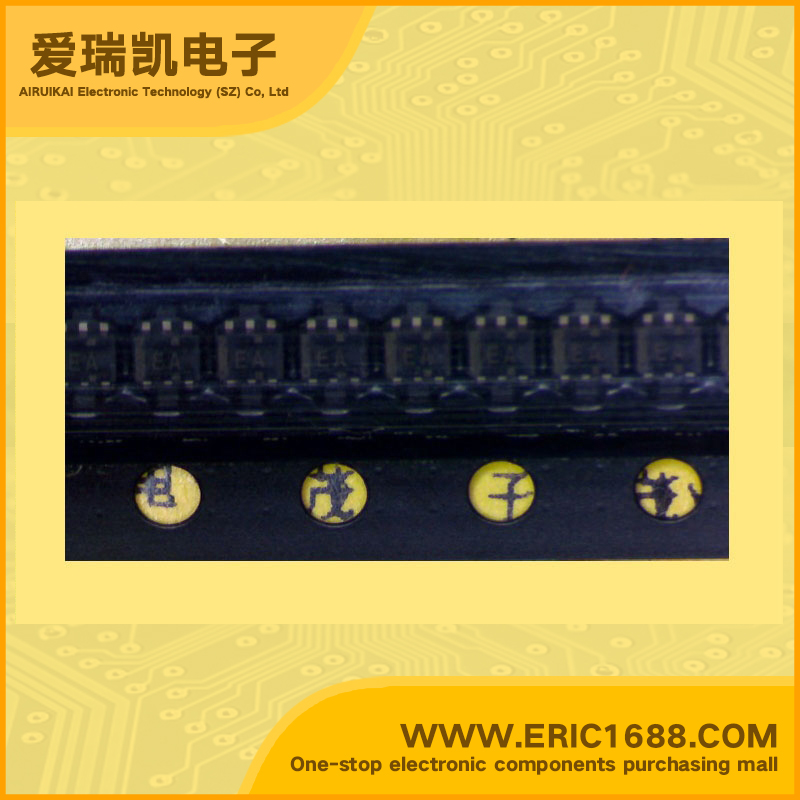

UP0411M001MT Complex Bipolar Transistor -50V -100mA R1=2.2KΩ R2=47KΩ SOT563 MARKING E4
|
V(BR) CBO Collector-Base Voltage |
-50V |
|
V(BR) CEO Collector-Emitter Voltage |
-50V |
| Collector Current(IC) | -100MA |
| Input Resistance(R1) | 2.2KΩ |
| Base-Emitter Resistance(R2) | 47 KΩ |
| Base-Emitter Input Resistance Ratio (R1/R2) | 0.047 |
| DC Current Gain(hFE) | 80 |
| Transtion Frequency(fT) | 80MHZ |
| Power Dissipation （Pd） | 125MW |
| Description & Applications | For switching/digital circuits
Two elements incorporated into one package
(Transistors with built-in resistor)
• Reduction of the mounting area and assembly cost by one half
|
