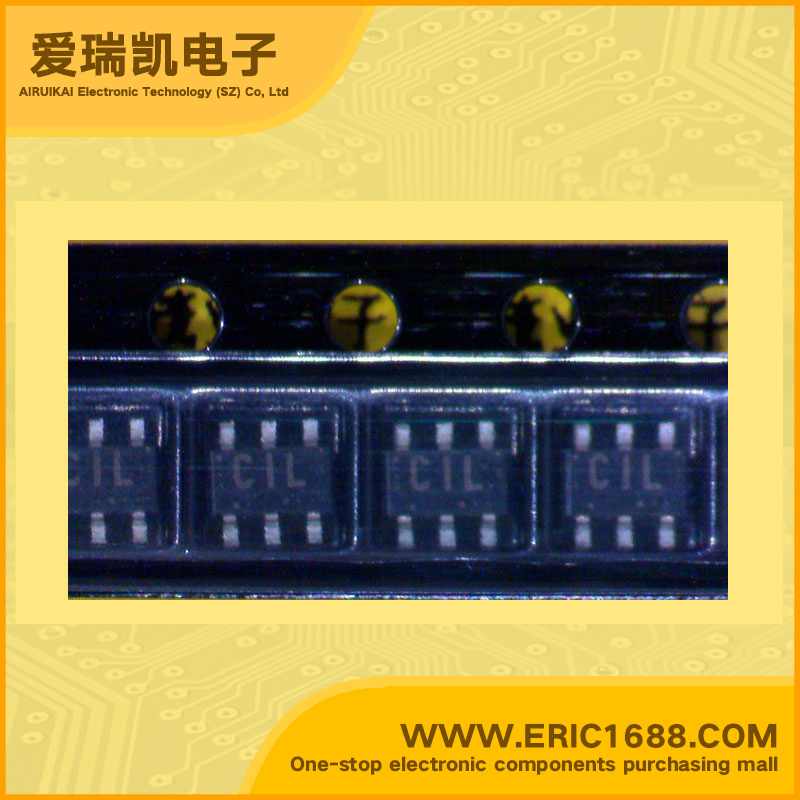

RF amplifier UPC2715T SOT-163 marking C1L
| 频率 Frequency | 1.2GHz |
| P1dB | |
| 增益 Gain | 16dB~23dB |
| 噪声系数 Noise Figure | 4.5dB~6dB |
| RF 类型 RF Type | |
| 电源电压 Voltage - Supply | 3.06V~3.74V |
| 电源电流 Current - Supply | 3.3mA~5.7mA |
| 测试频率 Test Frequency | |
| Description & Applications | FEATURES • BIPOLAR ANALOG INTEGRATED CIRCUIT • 1.2 GHz LOW POWER CONSUMPTION WIDE BAND AMPLIFIER SILICON BIPOLAR MONOLITHIC INTEGRATED CIRCUIT • Low power consumption : 15 mW (VCC = 3.4 V, ICC = 4.5 mA) TYP. • High power gain : 19 dB TYP. @ f = 0.5 GHz • Excellent frequency response: 1.2 GHz TYP. @ 3 dB down below the gain at 0.1 GHz • Input and output matching : 50 : • Super small package : 6 pin mini mold |
| 描述与应用 | 特点 •双极模拟集成电路 •1.2 GHz低功耗宽频带放大器硅双极单片集成电路 •低功耗：15毫瓦（VCC=3.4 V，ICC=4.5毫安）TYP。 •高功率增益：19 dB典型值。 @ F =0.5 GHz的 •优异的频率响应：1.2 GHz的TYP。 @低3 dB的增益在0.1 GHz以下 •输入和输出匹配50： •超小型包：6针迷你模具 |
