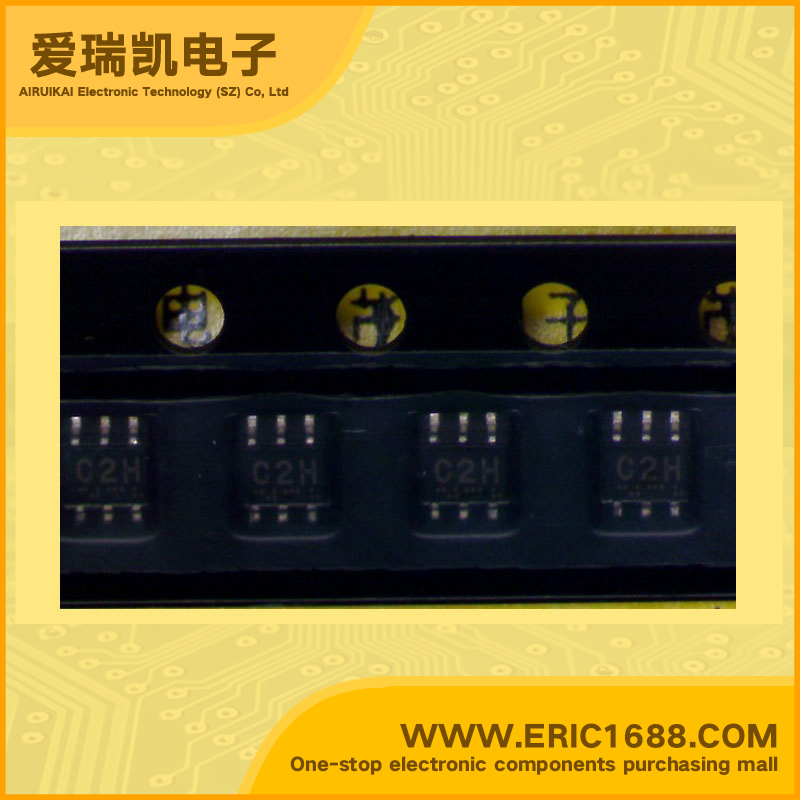

RF amplifier UPC2771TB-E3 SOT-363 marking C2H
| 频率 Frequency | 900MHz~1.5GHz |
| P1dB | 7dBm~9.5dBm |
| 增益 Gain | 18dB~24dB |
| 噪声系数 Noise Figure | 6dB~7.5dB |
| RF 类型 RF Type | 手机，GPS，PCS Cellular, GPS, PCS |
| 电源电压 Voltage - Supply | 2.7V~3.3V |
| 电源电流 Current - Supply | 36mA~45mA |
| 测试频率 Test Frequency | 1.5GHz |
| Description & Applications | FEATURES • 3V, SUPER MINI MOLD MEDIUM POWER SI MMIC AMPLIFIER • HIGH GAIN: 21 dB at 900 to 1500 MHz Typical • HIGH OUTPUT POWER: PSAT = +12.5 dBm at 900 MHz +11 dBm at 1500 MHz • LOW BIAS VOLTAGE: 3.0 V Typical, 2.7 V Minimum • SUPER SMALL PACKAGE: SOT-363 • TAPE AND REEL PACKAGING OPTION AVAILABLE |
| 描述与应用 | 特点 •3V，超级迷你模具中功率SI MMIC放大器 •高增益：21 dB，在900至1500 MHz典型 •高输出功率：PSAT=+12.5 dBm的在900 MHz 在1500 MHz+11 dBm的 •低偏置电压：3.0 V（典型值），2.7 V最小 •超小封装：SOT-363 •磁带和卷轴包装可供选择 |
