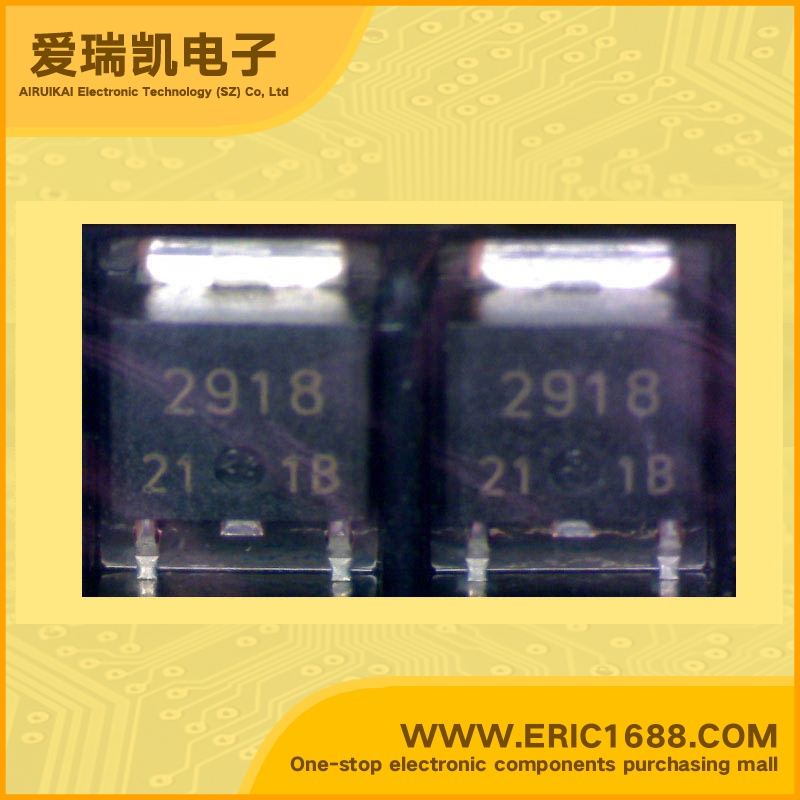

UPC2918T-E1 LDO Voltage Regulator 1.8V 700mV/0.7V TO-252 marking 2918 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 2.8~16V |
| 输出电压VOUT Voltage - Output | 1.8V |
| 输出电流Io Current - Output | 1A |
| 最大压降VDO Voltage - Dropout | 700mV/0.7V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 10W |
| Description & Applications | •BIPOLAR ANALOG INTEGRATED CIRCUIT • Output current capacity: 1 A • Low dropout voltage (VDIF = 0.5 V MAX. (at IO = 0.5 A)) • Output voltage accuracy: ±2% • On-chip saturation protector rising edge of input voltage (at low input voltage) • On-chip overcurrent limiter and thermal protection • On-chip output transistor safe operation area protection |
| 描述与应用 | •双极模拟集成电路 •输出电流能力：1A •低压差电压（VDIF=0.5 V MAX（IO=0.5 A））。 •输出电压精度：±2％ •饱和度保护芯片的输入电压上升沿 （在低输入电压） •片上过电流限幅器和热保护 •片上输出晶体管安全作业区保护 |
