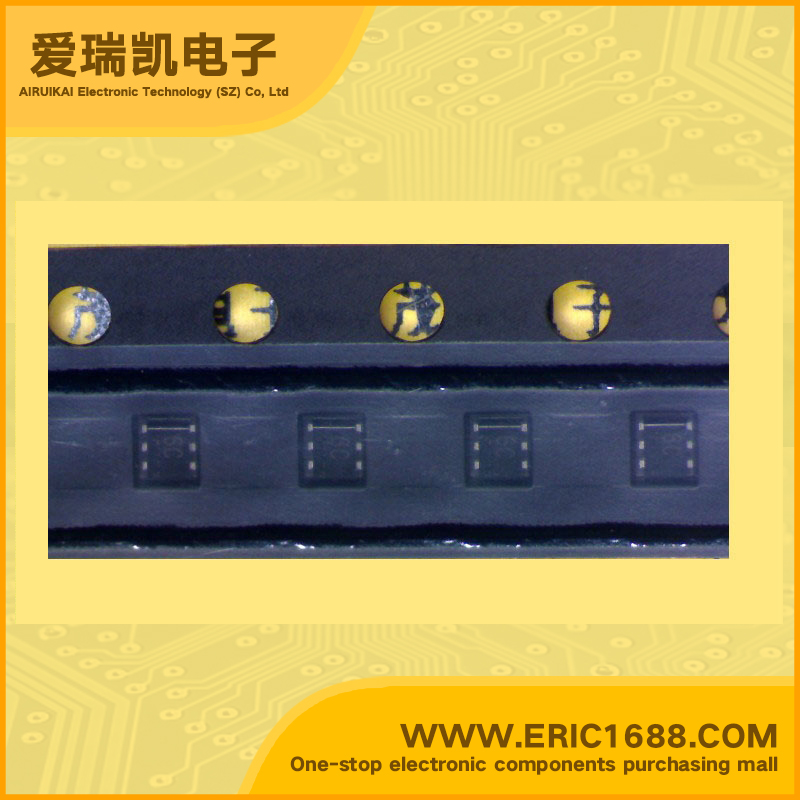

RF amplifier UPC8179TK SOT-363 marking 6C

Hot selling goods

Product description
频率
Frequency
100MHz~2.4GHz
P1dB-2dB~0.5dB
增益
Gain
13dB~17.5dB
噪声系数
Noise Figure
5dB~6.5dB
RF 类型
RF Type
通用 General Purpose
电源电压
Voltage - Supply
2.4V~3.3V
电源电流
Current - Supply
2.6mA~5.4mA
测试频率
Test Frequency
1.9GHz
Description & ApplicationsFEATURES • BIPOLAR ANALOG INTEGRATED CIRCUIT • SILICON MMIC LOW CURRENT AMPLIFIER FOR MOBILE COMMUNICATIONS • Low current consumption : ICC = 4.0 mA TYP. @ VCC = 3.0 V • Supply voltage : VCC = 2.4 to 3.3 V • Excellent isolation : ISL = 43.0 dB TYP. @ f = 1.0 GHz ISL = 42.0 dB TYP. @ f = 1.9 GHz ISL = 42.0 dB TYP. @ f = 2.4 GHz • Power gain : GP = 13.5 dB TYP. @ f = 1.0 GHz GP = 15.5 dB TYP. @ f = 1.9 GHz GP = 16.0 dB TYP. @ f = 2.4 GHz • Gain 1 dB compression output power : PO (1 dB) = +2.0 dBm TYP. @ f = 1.0 GHz PO (1 dB) = +0.5 dBm TYP. @ f = 1.9 GHz PO (1 dB) = +0.5 dBm TYP. @ f = 2.4 GHz • Operating frequency : 0.1 to 2.4 GHz (Output port LC matching) • High-density surface mounting : 6-pin lead-less minimold package (1.5 × 1.3 × 0.55 mm) • Light weight : 3 mg (Standard value) APPLICATION • Buffer amplifiers on 0.1 to 2.4 GHz mobile communications system
描述与应用特点 •双极模拟集成电路 •硅MMIC低电流放大器的移动通信 •低功耗:ICC=4.0 mA(典型值)。 @ VCC= 3.0 V •电源电压:VCC=2.4到3.3 V •优秀的隔离:ISL=43.0分贝TYP。 @ F =1.0 GHz的      ISL=42.0 dB(典型值)。 @ F =1.9 GHz的      ISL=42.0 dB(典型值)。 @ F =2.4 GHz的 •功率增益:GP=13.5 dB典型值。 @ F =1.0 GHz的      GP=15.5 dB典型值。 @ F =1.9 GHz的      GP=16.0 dB(典型值)。 @ F =2.4 GHz的 •增益1 dB压缩输出功率:PO(1分贝)=+2.0 dBm(典型值)。 @ F =1.0 GHz的      PO(1分贝)=+0.5 dBm的TYP。 @ F =1.9 GHz的      PO(1分贝)=+0.5 dBm的TYP。 @ F =2.4 GHz的 •工作频率:0.1到2.4 GHz(输出端口LC匹配) •高密度表面安装:6针引线minimold包装(1.5×1.3×0.55毫米) 重量轻:3毫克(标准值) 应用 •缓冲放大器在0.1到2.4 GHz的移动通信系统
