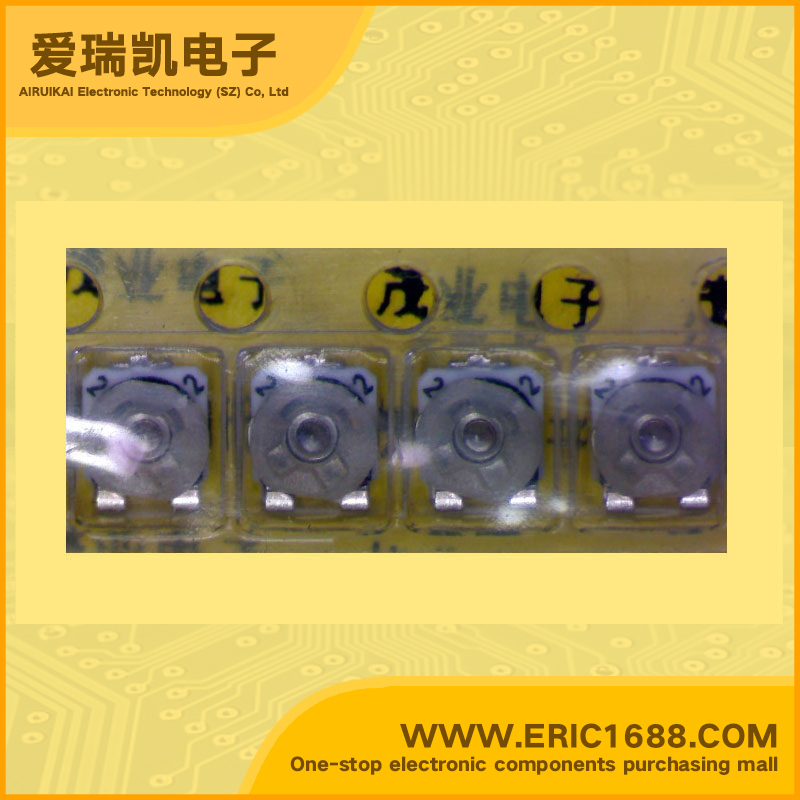

Chip Type Cermet Trimmer Potentiometer VG033CPXT200R 200Ω/Ohm 3X3-200R MARKING 22
| 电阻值 Resistance |
200Ω/Ohm |
| 额定功率 Power |
0.1W,1/10W |
| 容差 Tolerance |
±25% |
| 温度系数 Temperature Coefficient |
±250ppm/°C |
| 圈数 Number of Turns |
单圈 Single |
| 调节类型 Adjustment Type |
顶部调节 Top Adjustment |
| 端子类型 Termination Style |
J引线 J Lead |
| Description & Applications | Chip Type Cermet Trimmer Potentiometer VG033CPXT Type Features ● Small and thin type trimmer potentiometer ● 8mm width 4mm pitch emboss taping for auto insertion ● Automatic adjustable ● Reflow solderable |
| 描述与应用 | 金属陶瓷微调电位器芯片类型 VG033CPXT类型 特点 ●体积小，超薄型微调电位器 ●8mm宽度4mm间距浮雕录音自动插入 ●自动调节 ●可回流焊 |
