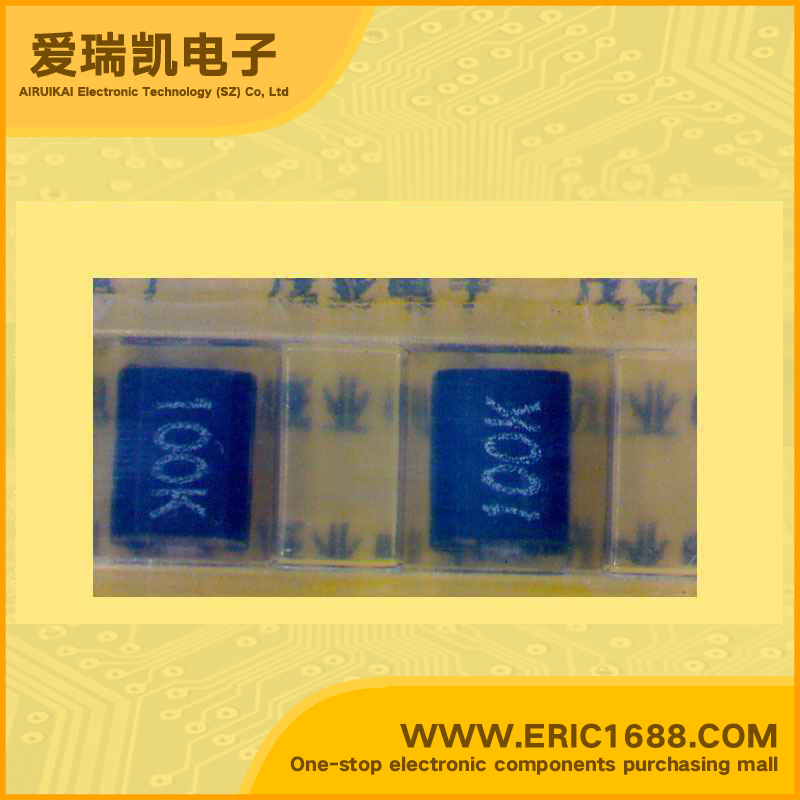

low power inductor WI453232-470K 47UH 4532-470K

Model：WI453232-470K
Mark / screen / code / typing：
Manufacturer：
Date Code：05+
Package：4532-470K
Standard Package：500
Min Order：10

Hot selling goods

Product description

电感值 Inductance	47UH
误差 Tolerance	±10%
额定电流 Current Rating	60mA
饱和电流 Current - Saturation
不同频率时的Q值 Q @ Frequency	30 @ 2.52MHz
自振谐频率SRF Frequency - Self Resonant	15MHz
DC电阻DCR DC Resistance (DCR)	7.00Ω/Ohm
屏蔽 Shielding
Description & Applications	Molded Wirewound Chip Inductor WI Series FEATURES Leaching resistant terminations due to metal tab electrodes Coils encapsulated in heat-proof resin make high accurate dimensions and resistant to mechanical shock or pressure High resistance to heat and humidity
描述与应用	模压绕线片式电感WI系列特点金属标签电极耐热树脂封装线圈，具有高精确的尺寸和耐机械冲击或压力高电阻

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
UPC2905BT LDO Voltage Regulator 5V 700mV/0.7V TO-252 marking 2905B Short-Circuit Protection Over-Temperature Protection	UPC2905BT Mark：2905B Package：TO-252	-	Batch number：05+	50 Min Order:10
CMS06 SBD Schottky Barrier Diodes 30V 2A 370mV/0.37V M-FLAT marking S6 low forward voltage switch power supply application	CMS06 Mark：S6 Package：M-FLAT	-	Batch number：12+ROHS 05+	545 Min Order:10
low power inductor SWI0402HS-6N8EJTS 6.8nH 0402-6N8	SWI0402HS-6N8EJTS Mark： Package：0402-6N8	-	Batch number：05+	3500 Min Order:100
NJM2872AF25 LDO Voltage Regulator 2.5V 100mV/0.1V With Enable Pin SOT-153/MTP5/SOT23-5 marking 94 Short-Circuit Protection Over-Temperature Protection	NJM2872AF25 Mark：94 Package：SOT-153/MTP5/SOT23-5	-	Batch number：05+NOPB600 05+NOPB600	3100 Min Order:10
KN4F4N PNP Bipolar Digital Transistor (BRT) -60V -100mA/-0.1A 85~340 0.15W/150mW SOT-523/SC-75 marking X7 switch inverter interface driver circuit	KN4F4N Mark：X7 Package：SOT-523/SC-75	-	Batch number：05+	66000 Min Order:10
2SC4325 NPN Transistors(BJT) 20V 15mA 10Ghz 50~250 SOT-323/SC-70/USM marking MO ultra high frequency-ultra high frequency band low noise amplifier	2SC4325 Mark：MO Package：SOT-323/SC-70/USM	-	Batch number：12+ROHS 05+	5800 Min Order:10
JFET Dual N-Channel Complex FET 2SK2145-GR 50V 2.6mA~6.5mA SOT-153/SOT23-5/SOT-25/SMV marking XG	2SK2145-GR Mark：XG Package：SOT-153/SOT23-5/SOT-25/SMV	-	Batch number：12+ROHS 12+ROHS	0 Min Order:10
