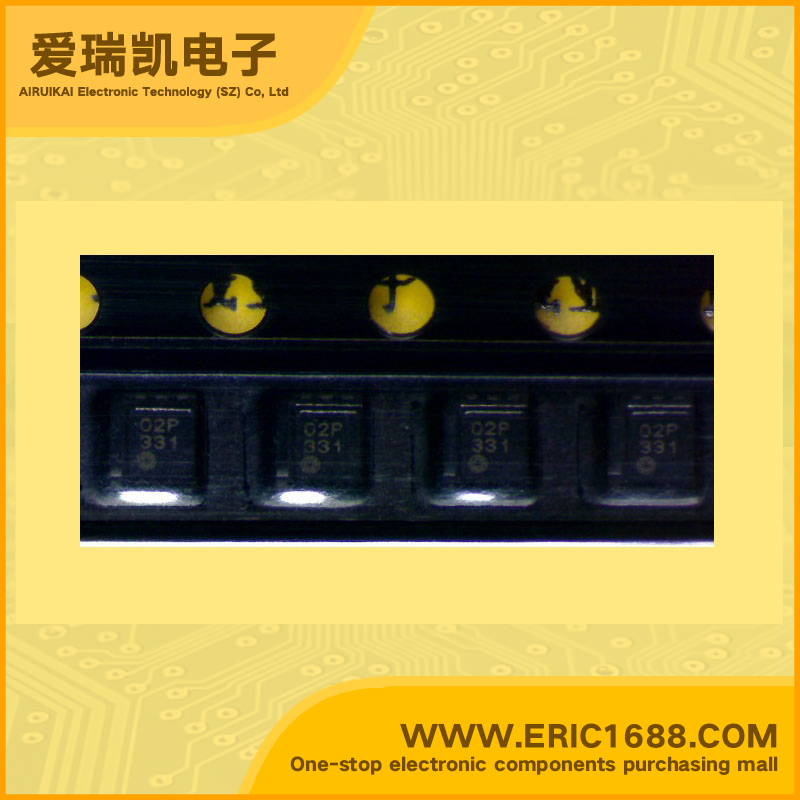

XC6202P332DR LDO Voltage Regulator 3.3V 670mV/0.67V usb-6B marking 2 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 22V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 100mA/0.1A |
| 最大压降VDO Voltage - Dropout | 670mV/0.67V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | • (High Voltage) Positive Voltage Regulators •CMOS Low Power Consumption •Operating Voltage Range : up to 20V •Dropout Voltage : 200mV @ 30mA, 670mV @ 100mA • Maximum Output Current : more than 150mA •Highly Accurate : ± 2% •Output Voltage Range : 1.8V to 18.0V •Current Limiter Circuit Built-In •Low ESR Capacitor can be used |
| 描述与应用 | （高电压）的正电压稳压器 •CMOS低功耗 •工作电压范围：20V •漏失电压：200mV的@30毫安，670mV@ 100mA第 •最大输出电流：电流超过150mA •高精度：±2％ •输出电压范围：1.8V至18.0V •内置限流电路 •低ESR电容可使用 |
