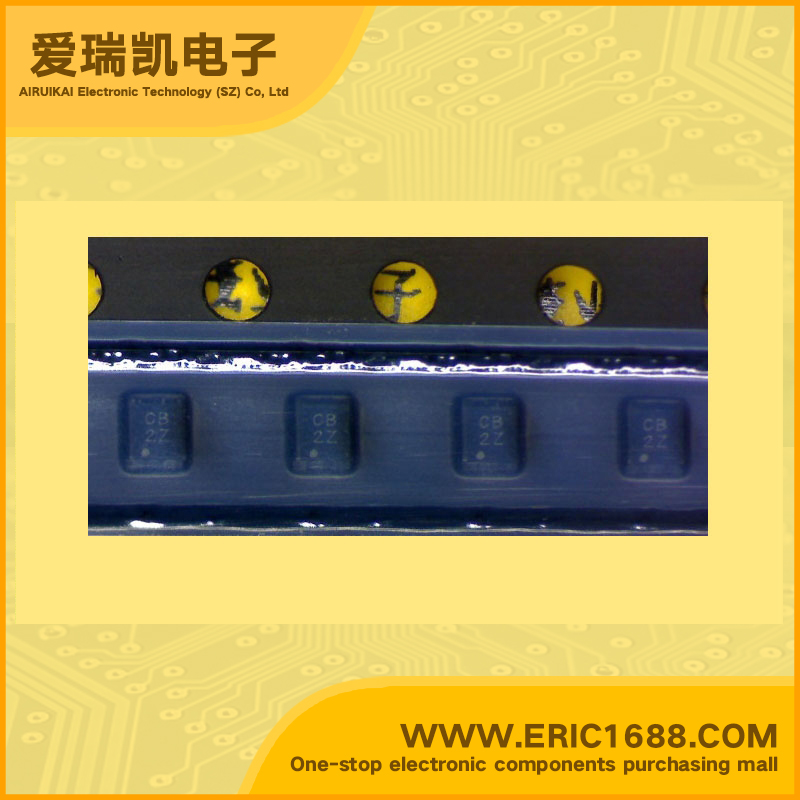

XC6213B332GR LDO Voltage Regulator 3.3V 400mV/0.4V With Enable Pin USP-4 marking GB2 Short-Circuit Protection Over-Temperature Protection

Price (excluding freight):
Batches(PCS):
$1.260
≤99
$1.134
≤499
$0.945
≤999
$0.819
≤2999
$0.756
FCL

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
6.5V
输出电压VOUT
Voltage - Output
3.3V
输出电流Io
Current - Output
100mA/0.1A
最大压降VDO
Voltage - Dropout
400mV/0.4V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
Description & Applications•High Speed LDO Regulators, Low ESR Cap. Compatible, Ultra Small Package •Maximum Output Current : 150mA @ VOUT=3.0V, VIN=4.0V •Dropout Voltage : 400mV •Input Voltage Range : 2.0 ~ 6.0V •Output Voltage Range : 1.2 ~ 5.0V (50mV Increments) •Highly Accurate : ±2% •Low Power Consumption : 35μA (TYP.) •Stand-by Current : Less than 0.1μA •High Ripple Rejection : 60dB @ 10kHz •Operating Temperature Range : - 40℃ ~ 85℃ •Low ESR Capacitor Compatible : Ceramic capacitor
描述与应用•高速LDO稳压器,低ESR电容。兼容,超小型封装 •最大输出电流:150mA@ VOUT= 3.0V,VIN=4.0V •漏失电压:400mV的 •输入电压范围:2.0〜6.0V •输出电压范围:1.2〜5.0V(50mV增量) •高精度:±2% •低功耗:35μA(典型值) •待机电流小于0.1μA •高纹波抑制:60dB的@10KHZ •工作温度范围: - 40℃〜85℃ •低ESR电容器兼容的陶瓷电容器
