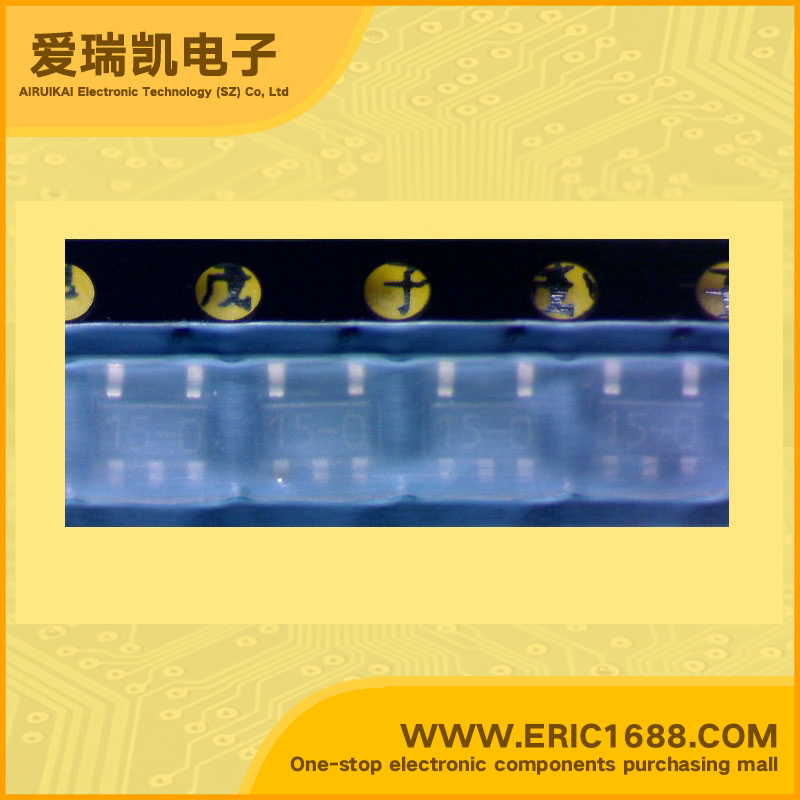

XC62HR1502MR LDO Voltage Regulator 1.5V 580mV/0.58V With Enable Pin SOT-153/SOT-25/SOT23-5 marking 15-0 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 12V |
| 输出电压VOUT Voltage - Output | 1.5V |
| 输出电流Io Current - Output | 160mA/0.16A |
| 最大压降VDO Voltage - Dropout | 580mV/0.58V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 150mW/0.15W |
| Description & Applications | •Positive Voltage Regulators (Output On/Off) • CMOS Low Power Consumption •Small Input-Output Voltage Differential : 0.2V @ 80mA, 0.38V @ 160mA • Maximum Output Current : 150mA (VOUT = 3.0V) • Highly Accurate : ±2% (±1%) • Output Voltage Range: 2.1V ~ 5.0V •Stand-by Supply Current: 0.1µA (VOUT = 3.0V) |
| 描述与应用 | •正电压稳压器（输出开/关） •CMOS低功耗 •小输入输出电压差：0.2V@80毫安， 0.38V@160毫安 •最大输出电流 ：电流150mA（VOUT= 3.0V） •高精度：±2％（±1％） •输出电压范围：2.1V〜5.0V？ •待机电源电流：0.1μA（VOUT= 3.0V） |
