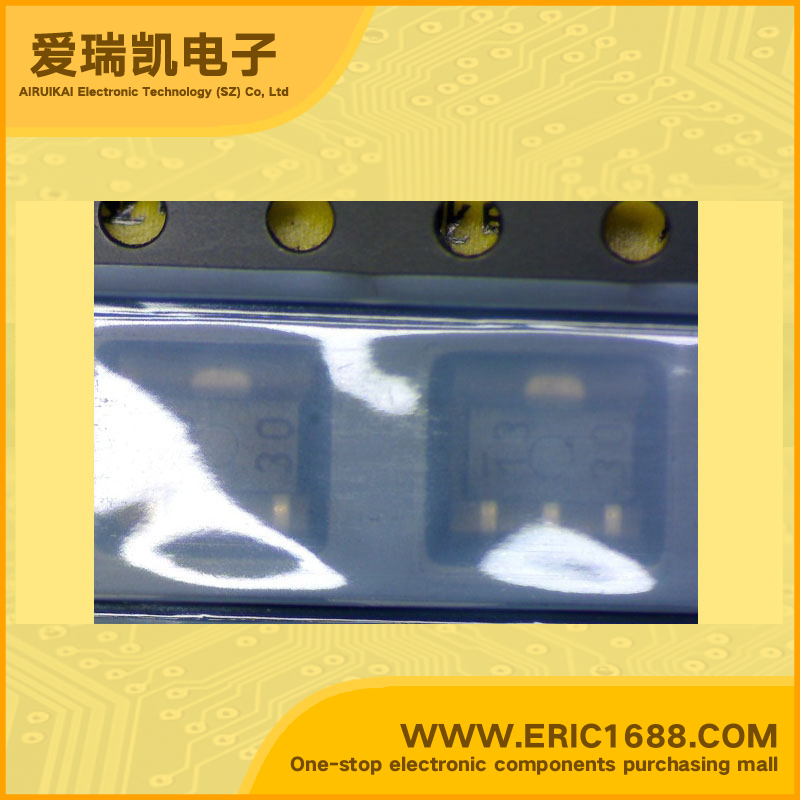

XC6372B332PR DC/DC Step-Up Converter 3.3V SOT-89 marking 23D STEP-UP Switching Regulator

Hot selling goods

Product description
控制方式
MODE
PWM/PFM
输入电压VIN
Input Voltage
0.9〜10V
输出电压VOUT
Output Voltage
3.3V
输出电流IOUT
Output Current
100mA/0.1A
震荡频率FOSC
Oscillation Frequency
100KHz
内置FET
Built-in FET
Description & ApplicationsPWM / PFM switching control, boost DC / DC Controller / Converter •Operating (start-up) voltage range: 0.9V~10V •Output voltage range : 2.0V~7.0V in 0.1V increments •Highly accurate : Set-up voltage ±2.5% •Oscillator frequency : 50kHz, 100kHz, 180khz (±15%) selectable •Maximum output currents (Tr built-in) : Typ.100mA @ VIN=3.0, •VOUT=5.0V .....Note(1) •Highly efficient (Tr built-in) : Typ.85% @ VIN=3.0, VOUT=5.0V .....Note(1) •Built-in switching transistor type and an external Tr type are available. •Five-lead packaged units offer either Chip Enable or •independent VOUT pin option. •Phase compensation and soft start-up circuits built-in Small
描述与应用PWM/PFM切换控制、升压型DC/DC控制器/转换器 •工作(启动)电压范围:0.9V〜10V •输出电压范围:2.0V〜7.0V,0.1V增量 •高精度:设定电压±2.5% •振荡器频率:50kHz的100kHz时,180KHZ(±15%)可选 •最大输出电流(TR内置) Typ.100mA@ VIN= 3.0, •VOUT= 5.0V.....注(1) •高效(TR内置) :Typ.85%VIN=3.0,VOUT= 5.0V.....注(1) •内置开关晶体管的类型和外部TR型可供选择。 •五导联包装单位提供两种芯片启用或 •独立VOUT引脚选项。 •相位补偿和软启动电路
