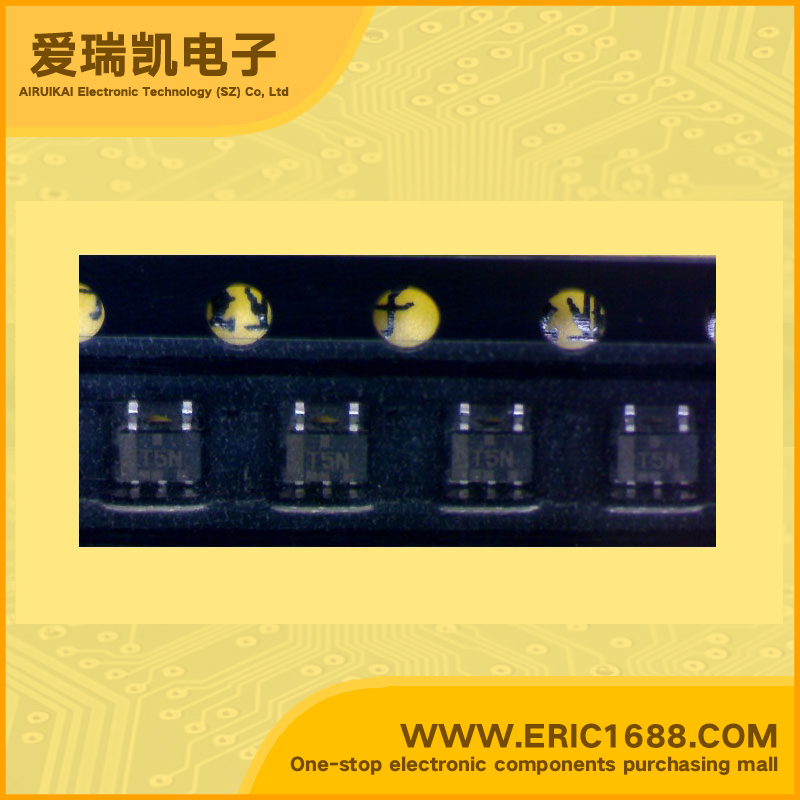

Integrated Circuit（IC） inverter XC74UL04AANR SOT-353/SSOT-25/SC-88A marking T5N
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1µA |
| 输出高，低电平电流 Current - Output High, Low | -20mA,20mA |
| 低逻辑电平 Logic Level - Low | 0.5v~1.5v |
| 高逻辑电平 Logic Level - High | 1.5V~3.85V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 3ns @ 5V，50pF |
| Description & Applications | High Speed Operation : tpd = 2.05ns(TYP.) Operating Voltage Range : 2V ~ 5.5V Low Power Consumption : 1μA (MAX.) CMOS Inverter Ultra Small Packages : SSOT-25, SON-6* * Under Development |
| 描述与应用 | 高速操作：TPD =12ns的（典型值） 工作电压范围：2V〜6V 功耗：1μA（最大值） 超小型封装形式：SOT-26 |
