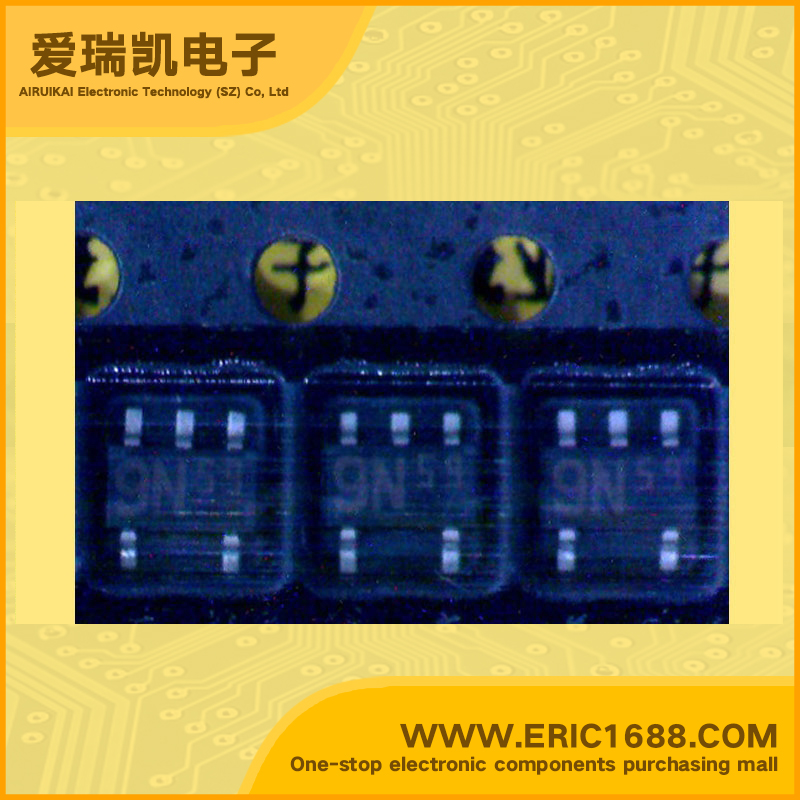

XN1216 NPN+NPN Complex Bipolar Digital Transistor 50V 100mA 160~460 300mW/0.3W SOT-153/SC-74A/SOT23-5 marking 9N switching inverting interface driver circuit
| Collector-Base Voltage(VCBO) | 50V |
| Collector-Emitter Voltage(VCEO) | 50V |
| Collector Current(IC) | 100mA |
| Input Resistance(R1) | 4.7KΩ/Ohm |
| Base-Emitter Resistance(R2) | |
| (R1/R2) Resistance Ratio | |
| DC Current Gain(hFE) | 160~460 |
| stion Frequency(fT) | 150MHz |
| Power Dissipation | 300mW/0.3W |
| Description & Applications |
Silicon NPN epitaxial planer transistor
For switching/digital circuits
UN1216× 2 elements
|
