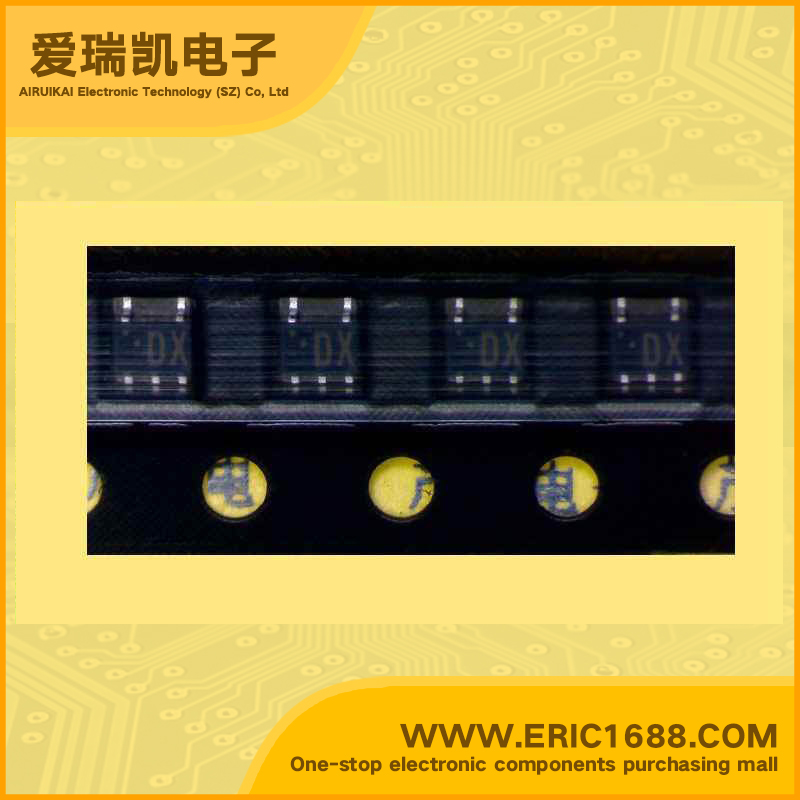

XP3389 NPN+PNP Complex Bipolar Transistor 50V/-50V 100mA/-100mA 35/20 SOT-353/SC-88A marking DX switch and digital circuit application

Price (excluding freight):
Batches(PCS):
$0.090
≤99
$0.081
≤499
$0.068
≤999
$0.058
≤2999
$0.054
FCL

Hot selling goods

Product description





Q1  Collector-Base Voltage(VCBO)  50V
Q1Collector-Emitter Voltage(VCEO)  50V
Q1 Collector Current(IC)  100MA
Q2 Collector-Base Voltage(VCBO)  -50V
Q2Collector-Emitter Voltage(VCEO)  -50V
Q2Collector Current(IC)  -100MA
Q1 Input Resistance(R1)  10KΩ
Q1Base-Emitter Resistance(R2)  10KΩ
Q1(R1/R2) Q1 Resistance Ratio  1
Q2 Input Resistance(R1)  0.51KΩ
Q2Base-Emitter Resistance(R2)  5.1KΩ
Q2(R1/R2) Q2 Resistance Ratio  0.1
 DC Current Gain(hFE) Q1/Q2  35 / 20
Transtion Frequency(fT) Q1/Q2  150MHZ / 80MHZ
 Power Dissipation  150MW
Description & Applications
Silicon NPN epitaxial planar type (Tr1)
Silicon PNP epitaxial planar type (Tr2)
For digital circuits
UNR2211 + UNR2118
