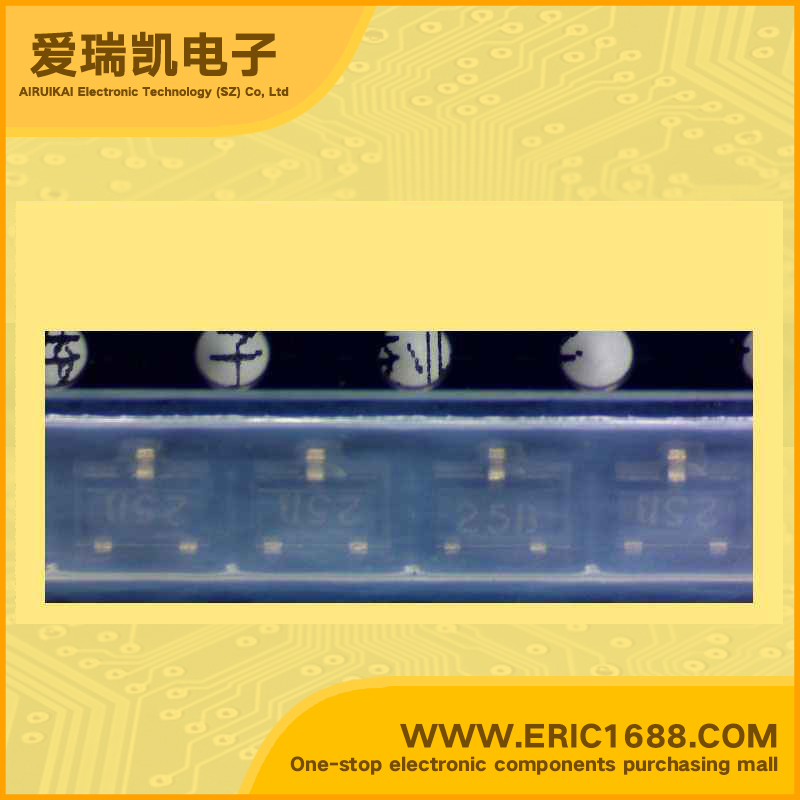

ZRA250F02TA Voltage Reference Power Management IC 2.5V SOT-23 marking 25B Precision Micropower Voltage Reference
| 参考类型 Reference Type | 旁路，精度 Shunt, Precision |
| 输出电压Vo Voltage - Output | 2.5V |
| 误差 Tolerance | ±1% |
| 温度系数 Temperature Coefficient | 90ppm/°C |
| 输入电压 Voltage - Input | |
| 阴极电流 Current - Cathode | 50µA |
| 输出电流IOUT Current - Output | 5mA |
| Description & Applications | FEATURES • PRECISION 2.5 VOLT MICROPOWER VOLTAGE REFERENCE • Small outline SOT23, SO8 and TO92 style packages. • No stabilising capacitor required • Typical TC 30ppm/°C • Typical slope resistance 0.4Ω • ± 3%, 2%,1% and 0.5% tolerance • Industrial temperature range • Operating current 50µA to 5mA • Transient response, stable in less than 10µs • Optional extended current range APPLICATIONS • Battery powered and portable equipment. • Metering and measurement systems. • Instrumentation. • Test equipment. • Data acquisition systems. • Precision power supplies. |
| 描述与应用 | 特点 •精密2.5伏微功耗电压基准 •小外形SOT23，SO8和TO92风格包。 •无稳定电容 •典型的TC为30ppm/°C •典型斜率电阻0.4Ω •±3％，2％，1％和0.5％的容差 •工业温度范围 •工作电流50μA到5mA •瞬态响应，稳定在不超过10μs •可选的扩展电流范围 应用 •电池供电的便携式设备。 •计量和测量系统。 •仪表。 •测试设备。 •数据采集系统。 •精密电源。 |
