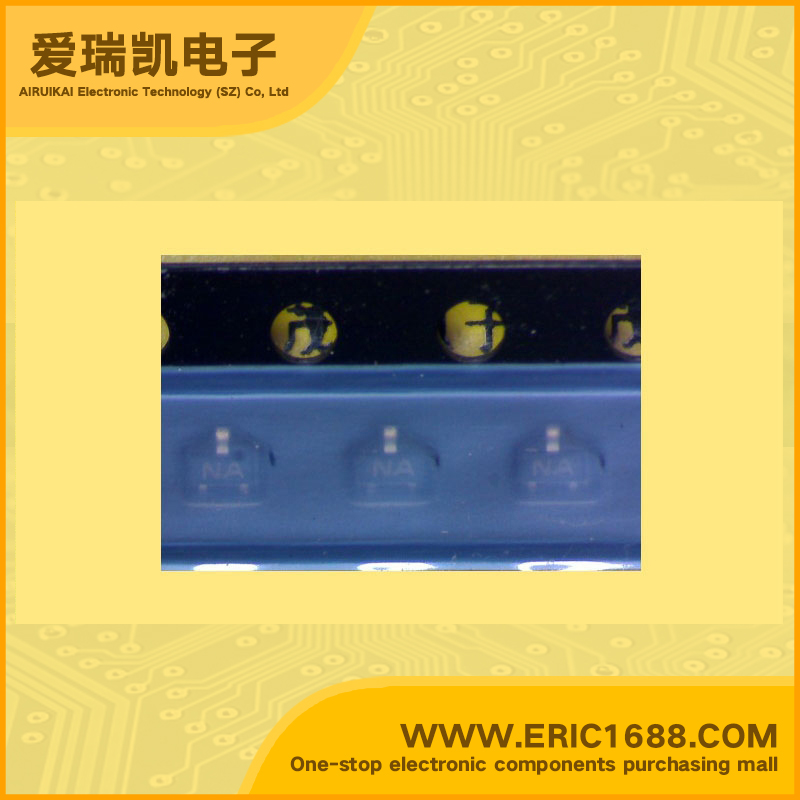

RT1N151U NPN Bipolar Digital Transistor (BRT) 50V 200mA/0.2A 100k 100k SOT-523 marking NA
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 200mA/0.2A |
| 基极输入电阻R1 Input Resistance(R1) | 100KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 100KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 50 |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 耗散功率Pc Power Dissipation | 0.2W/200mW |
| Description & Applications | FEATURE ・Built-in bias resistor (R1=100kΩ,R2=100kΩ). |
| 描述与应用 | 内置偏置电（R1=100KΩ，R2=100kΩ的） |
