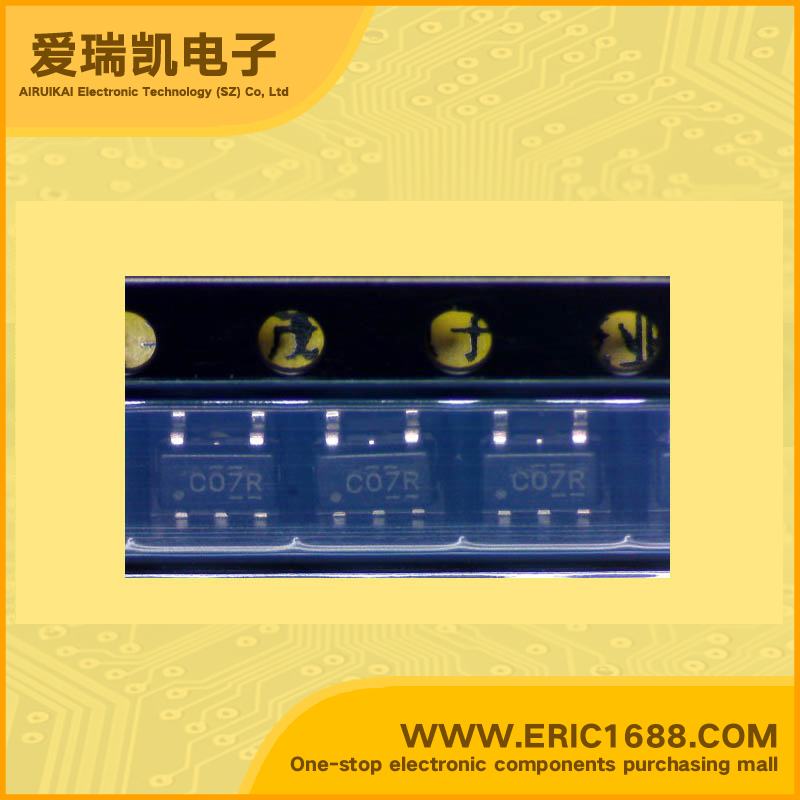

Logic circuit Buffer/Line Driver SN74LVC1G07DBVT SOT-153/SOT23-5/SC-74A marking C07R

Hot selling goods

Product description
逻辑类型
Logic Type
非反相并带开漏极 Non-Inverting with Open Drain
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
1.65 V ~ 5.5 V
静态电流Iq
Current - Quiescent (Max)
—,32mA
输出高,低电平电流
Current - Output High, Low
SINGLE BUFFER/DRIVER WITH OPEN-DRAIN OUTPUT;This single buffer/driver is designed for 1.65-V to 5.5-V VCC operation. The output of the SN74LVC1G07 device is open drain and can be connected to other open-drain outputs to implement 'active-low wired-OR' or 'active-high wired-AND' functions.
低逻辑电平
Logic Level - Low
具有漏极开路输出的单缓冲/驱动器;这种单缓冲/驱动器设计用于1.65-V到5.5 V的VCC操作。 SN74LVC1G07设备的输出是漏极开路,可以连接到其它的漏极开路输出来实现的低电平有效的有线或'或'高电平有效的有线和功能。
高逻辑电平
Logic Level - High
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
Description & Applications
描述与应用
