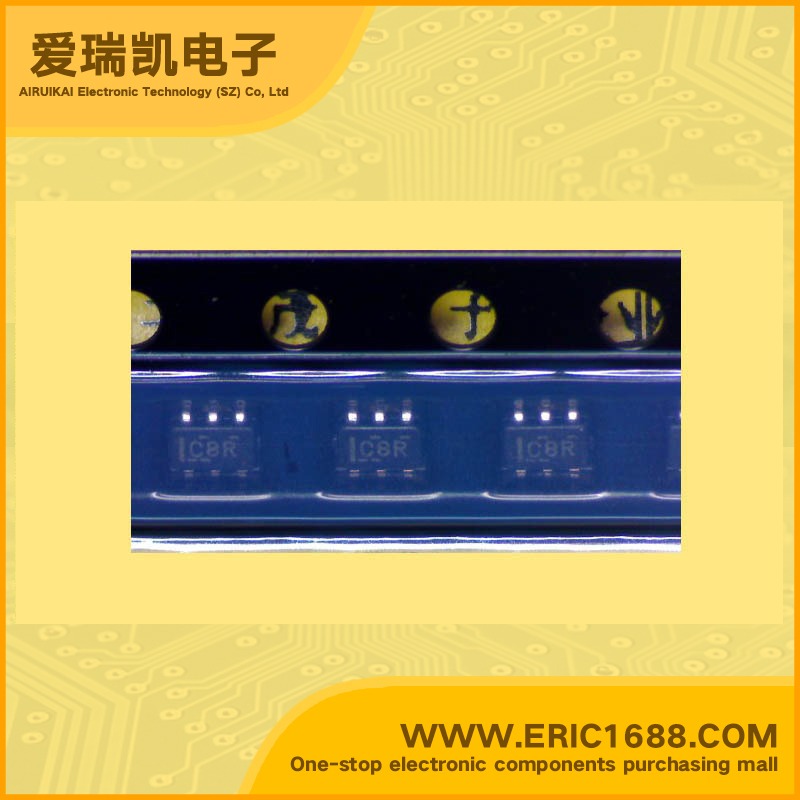

Integrated Circuit(IC) XOR gate SN74LVC1G386DCKR SOT-363/SC70-6/SC-88 marking C8R

Hot selling goods

Product description
逻辑类型
Logic Type
异或门 XOR Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
3
电源电压Vcc
Voltage - Supply
1.65V~5.5V
静态电流Iq
Current - Quiescent (Max)
10µA
输出高,低电平电流
Current - Output High, Low
-32mA,32mA
低逻辑电平
Logic Level - Low
0.7 V ~ 0.8 V
高逻辑电平
Logic Level - High
1.7 V ~ 2 V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
4nS @5v,50pF
Description & ApplicationsSINGLE 3-INPUT POSITIVE-XOR GATE ;• Available in the Texas Instruments • Latch-Up Performance Exceeds 100 mA NanoStar ™ and NanoFree™ Per JESD 78, Class II • ESD Protection Exceeds JESD 22 • Supports 5-V VCC Operation • Inputs Accept Voltages to 5.5 V • Ioff Supports Partial-Power-Down Mode – 2000-V Human-Body Model (A114-A) – 200-V Machine Model (A115-A) – 1000-V Charged-Device Model (C101) Operation
描述与应用单3输入正异或门;•可在德州仪器•闭锁性能超过100 mA 每JESD 78,II类NANOSTAR™和NanoFree™ •ESD保护超过JESD22 •支持5-V VCC操作 •接受输入电压为5.5 V •IOFF支持部分掉电模式 - 2000-V人体模型(A114-A)   - 200-V机型号(A115-A) - 1000-V带电器件模型(C101)操作
