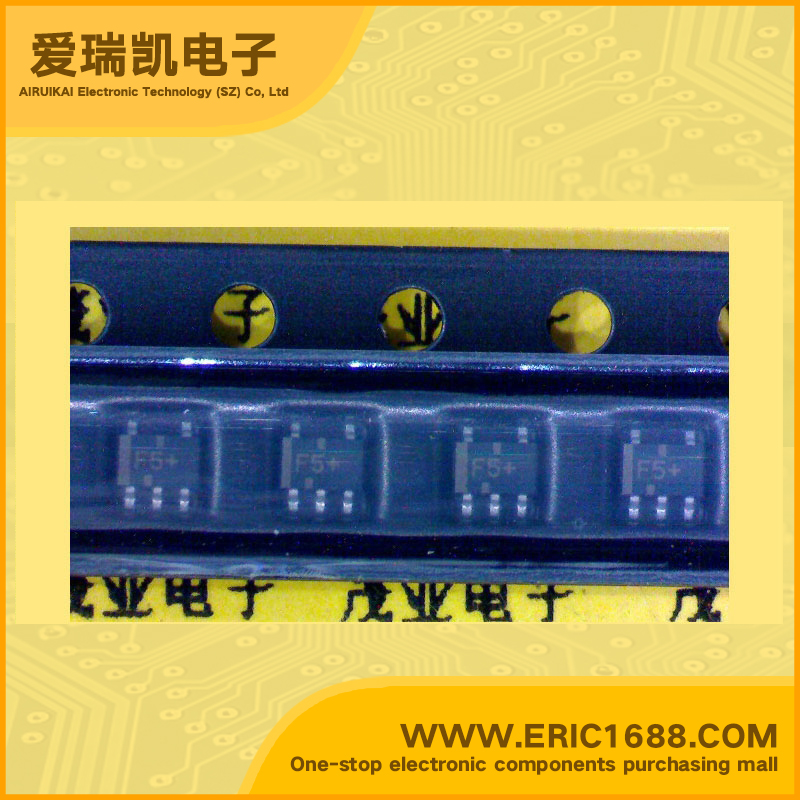

Integrated Circuit（IC） inverter HD74HCT1G04CME SOT-353/CMPAK-5 marking f5
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 4.5V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 0.2uA |
| 输出高，低电平电流 Current - Output High, Low | -2mA，2mA |
| 低逻辑电平 Logic Level - Low | 0.8V |
| 高逻辑电平 Logic Level - High | 2V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 16.2ns @ 4.5V，50pF |
| Description & Applications | Inverter；Features The basic gate function is lined up as Renesas uni logic series Supplied on emboss taping for high-speed automatic mounting TTL compatible input level Supply voltage range : 4.5 to 5.5 V Operating temperature range : –40 to +85°C |IOH| = IOL = 2 mA (min) |
| 描述与应用 | 逆变器;特性 基本门功能一字排开瑞萨单向逻辑系列 提供压纹盘带高速自动安装 TTL兼容的输入电平 电源电压范围：4.5到5.5 V 工作温度范围：-40至+85°C | IOH= IOL=2 mA（最小） |
