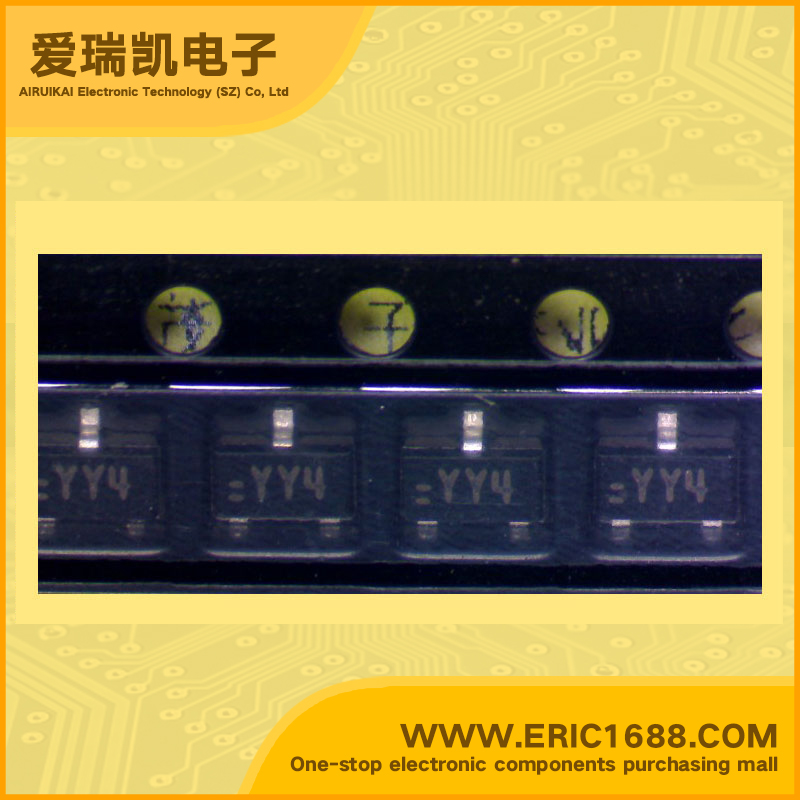

2SC4104-4 NPN Transistors(BJT) 70V 50mA 700MHz 90~180 50mV SOT-23/SC-59 marking YY4 CRT显示器 application
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 70V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 60V |
| 集电极连续输出电流IC Collector Current(IC) | 50mA |
| 截止频率fT Transtion Frequency(fT) | 700MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 90~180 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 50mV |
| 耗散功率Pc Power Dissipation | 200mW/0.2W |
| Description & Applications | PNP/NPN Epitaxial planar Silicon transistor High-Definition CRT Display Applications High fT Small reverse transfer capacitance Adoption of FBET process |
| 描述与应用 | PNP/ NPN外延平面硅晶体管 高清晰度CRT显示器应用 高FT 小反向传输电容 采纳FBET过程 |
