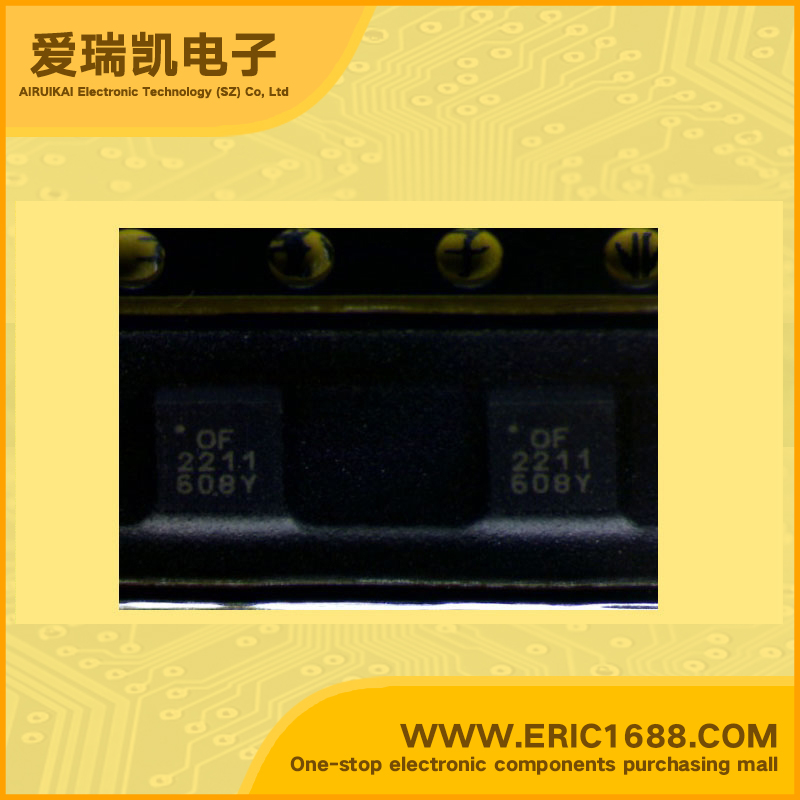

MIC2211-OFYMLTR LDO Voltage Regulator 2.9/1.5V 120/240mV With Enable Pin 33-10L/10MLF 3X3 marking OF2211 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 2 |
| 输入电压VIN Voltage - Input | 2.25~5.5V |
| 输出电压VOUT Voltage - Output | 2.9/1.5V |
| 输出电流Io Current - Output | 150/300mA |
| 最大压降VDO Voltage - Dropout | 120/240mV |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | Dual µCap LDO with Open-Drain Driver ；• Input voltage range: 2.25V to 5.5V • Stable with ceramic output capacitor • 2 LDO outputs – Output 1 - 150mA output current – Output 2 - 300mA output current • 1 Open-drain driver • Low dropout voltage of 80mV @ 100mA • Ultra-low quiescent current of 48µA • High output accuracy: – +1.0% initial accuracy – +2.0% over temperature • Thermal shutdown protection • Current limit protection |
| 描述与应用 | 双μCapLDO具有漏极开路驱动器;•输入电压范围：2.25V至5.5V •与陶瓷输出电容稳定 •2 LDO输出 1 - 输出 - 150mA输出电流 2 - 输出 - 输出电流300mA的电流 •1开漏驱动器 •80mV的电压，在100mA低压差 •超低静态电流为48μA •高输出精度： - 1.0％的初始精度 - +2.0％，过温度保护 •热关断保护 •电流限制保护 |
