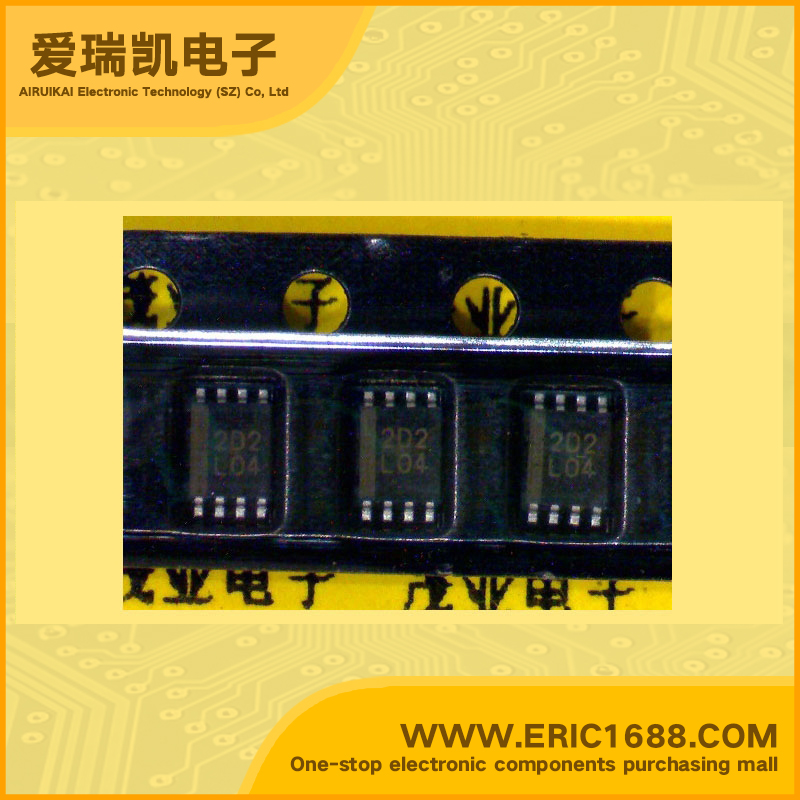

Integrated Circuit（IC） inverter HD74LV2G04AUSE SSOP8 marking l04
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 3 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 1.65V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 10uA |
| 输出高，低电平电流 Current - Output High, Low | -12mA，12mA |
| 低逻辑电平 Logic Level - Low | 0.1V~0.55V |
| 高逻辑电平 Logic Level - High | 1.4V~3.8V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 5.3ns @ 5V，50pF |
| Description & Applications | Triple Inverters；Features The basic gate function is lined up as Renesas uni logic series Supplied on emboss taping for high-speed automatic mounting Electrical characteristics equivalent to the HD74LV04A Supply voltage range : 1.65 to 5.5 V Operating temperature range : –40 to +85°C All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.5 V (@VCC = 0 V) Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V) All the logical input has hysteresis voltage for the slow transition |
| 描述与应用 | 三重逆变器;特性 基本的门函数是列为瑞萨单项逻辑系列 提供压纹盘带高速自动安装 相当于HD74LV04A电特性 电源电压范围:1.65 - 5.5 V 工作温度范围:- -40 + 85°C 所有输入VIH(最大)= 5.5 V(@VCC = 0 V 5.5 V) 所有输出VO(最大)= 5.5 V(@VCC = 0 V) 输出电流±6mA(@VCC = 3.0 V至3.6 V),±12mA(@VCC = 4.5 V至5.5 V) 所有的逻辑输入有滞后电压缓慢过渡 |
