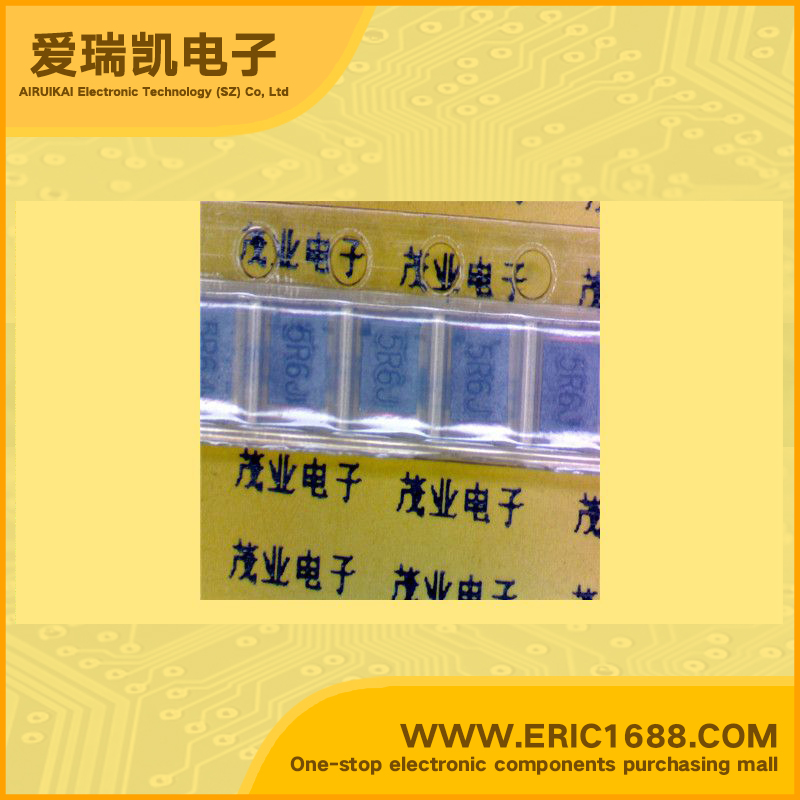

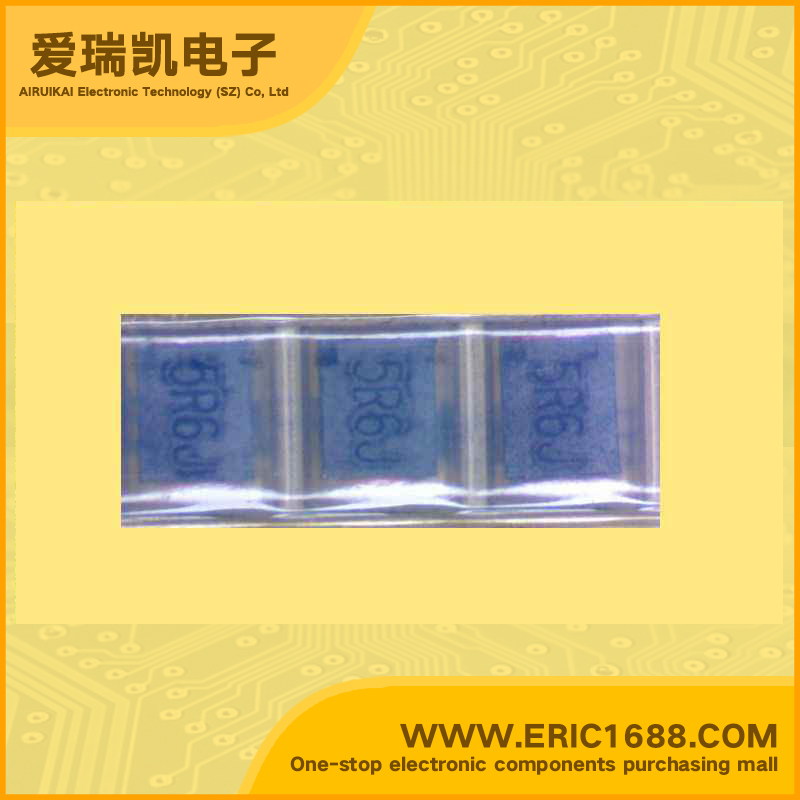

low power inductor NLV32T-5R6J-PF 5.6UH 3225-5R6J 5R6J
| 电感值 Inductance | 5.6UH |
| 误差 Tolerance | ±5% |
| 额定电流 Current Rating | 200mA |
| 饱和电流 Current - Saturation | |
| 不同频率时的Q值 Q @ Frequency | 30 @ 7.96MHz |
| 自振谐频率SRF Frequency - Self Resonant | 45MHz |
| DC电阻DCR DC Resistance (DCR) | 1.6Ω/Ohm |
| 屏蔽 Shielding | 无屏蔽 Unshielded |
| Description & Applications | NLV Series NLV32 Type FEATURES • The product has good heat durability that withstands lead-free compatible reflow soldering conditions. • Lead-free material is used for the plating on the terminal • The electrical characteristics, reliability, shape and pad shape are the same as the previous NL series. • The product uses metal terminals, which realize excellent con-nection reliability. • Highly heat resistant thermoplastic resin is used to form the exterior package. • From 0.01µH to 100µH, all of the products in the E-12 series are J(±5%) tolerance products. • This product conforms to the RoHS standard. |
| 描述与应用 | NLV系列NLV32类型 特点 该产品具有良好的耐热性，可承受无铅兼容回流焊条件。 无铅材料可用于终端上的镀敷 电气特性，可靠性，形状和焊垫的形状与前NL系列是相同的。 该产品采用金属终端，实现优异的连接可靠性。 外部包装是用高耐热性的热塑性树脂。 在E-12系列所有的产品中J（±5％）公差都是从0.01μH至100μH。 本产品符合RoHS标准。 |
