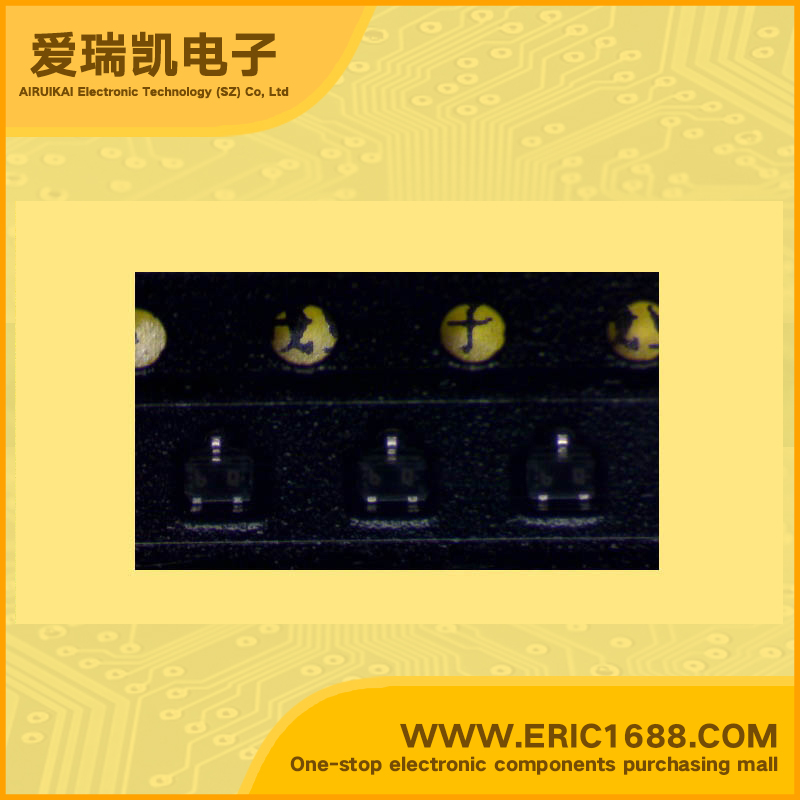

UN911L PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 20 0.125W/125mW SOT-523/SC-75 marking 6Q switch inverter interface driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -50V |
| 集电极连续输出电流IC Collector Current(IC) | -100mA/-0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 4.7KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 4.7KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 20 |
| 截止频率fT Transtion Frequency(fT) | 150MHz |
| 耗散功率Pc Power Dissipation | 0.125W/125mW |
| Description & Applications | Features •Transistors with built-in Resistor •Silicon PNP epitaxial planer transistor •Costs can be reduced through downsizing of the equipment and reduction of the number of parts. •SS-Mini type package, allowing automatic insertion through tape packing and magazine packing. |
| 描述与应用 | 特点 •内置电阻晶体管 •硅PNP外延刨床晶体管 •成本可降低通过裁员的设备和零件的数量减少。 •SS-迷你型包装，允许通过自动插入磁带包装盒包装。 |
