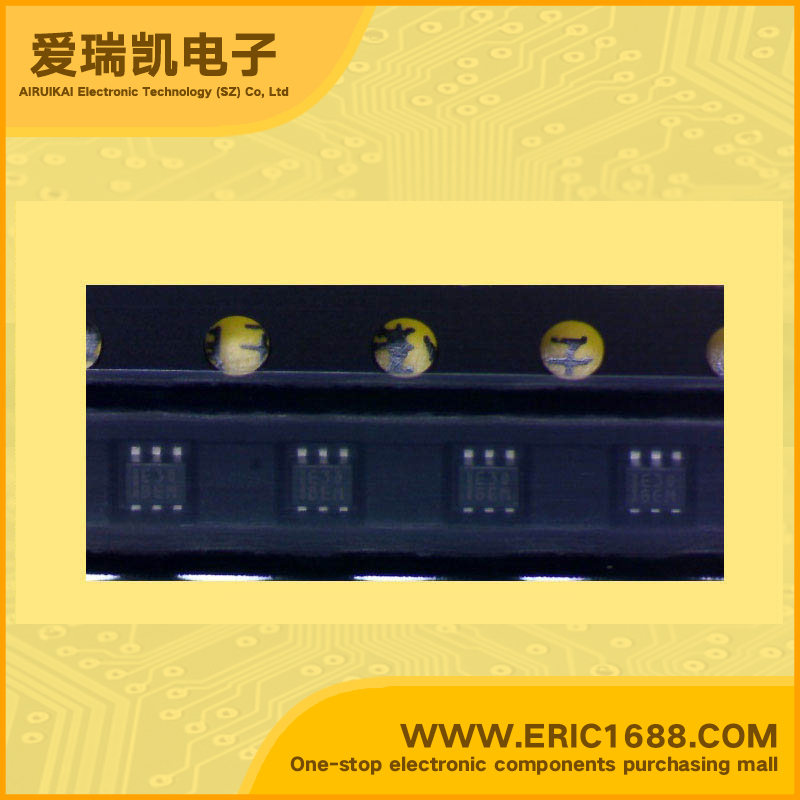

RD5RW30BA LDO Voltage Regulator 3V 40mV With Enable Pin SOT-563/SON1612-6 marking E30 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 8V~9V |
| 输出电压VOUT Voltage - Output | 3V |
| 输出电流Io Current - Output | 50mA |
| 最大压降VDO Voltage - Dropout | 40mV |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 500mW/0.5W |
| Description & Applications | •Ultra-Low Supply CurrentTyp. 1.5µA (except pull-up/pull-down current for CE /CE pin) • Standby Current Typ. 0.1µA • Dropout Voltage ..Typ. 40mV (IOUT=1mA, Rx5RW30A/B) • Low Temperature-Drift Coefficient of Output Voltage...Typ. ±100ppm/°C • Excellent Line Regulation ..Typ. 0.05%/V • High Accuracy Output Voltage±2.0% • Built-in Current Limit Circuits • Power source for battery-powered equipment. • Power source for cameras, VCRs, camcorders, hand-held audio instruments and hand-held communication equipment. • Precision voltage references |
| 描述与应用 | •Ultra-Low Supply Current Typ. 1.5µA (except pull-up/pull-down current for CE /CE pin) • Standby Current Typ. 0.1µA • Dropout Voltage ..Typ. 40mV (IOUT=1mA, Rx5RW30A/B) • Low Temperature-Drift Coefficient of Output Voltage...Typ. ±100ppm/°C • Excellent Line Regulation ..Typ. 0.05%/V • High Accuracy Output Voltage±2.0% • Built-in Current Limit Circuits • Power source for battery-powered equipment. • Power source for cameras, VCRs, camcorders, hand-held audio instruments and hand-held communication equipment. • Precision voltage references |
