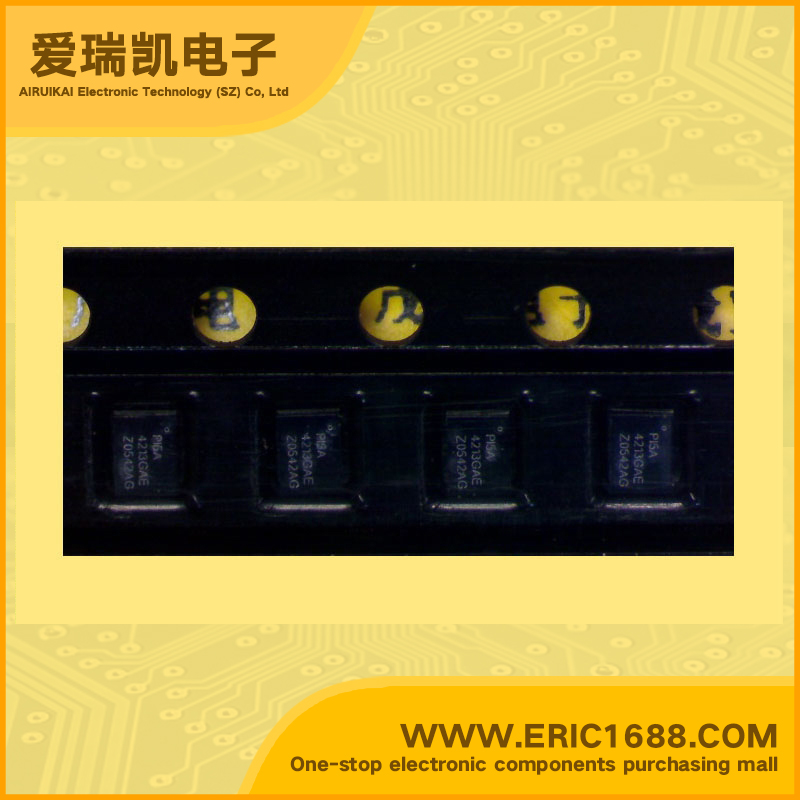

Integrated Circuit（IC） analog switch PI5A4213GAEX 1206 marking 4213GAE
| 开关配置 Circuit | 2*单刀三掷 2*SP3T |
| 导通电阻 On-State Resistance | 2Ω/Ohm |
| 电源电压 Voltage - Supply | 1.65 V ~ 5.5 V |
| Description & Applications | Low Voltage Dual SP3T Analog Switch 3:1 Mux/DeMux Bus Switch CMOS Technology for Bus and Analog Applications Low On-Resistance: 0.5Ω (typ) on channels 0 and 1 1.65Ω (typ) on channel 2 Control Input Overvoltage Tolerance: 5.5V min. High Off Isolation: -42dB Crosstalk Rejection Reduces Signal Distortion: -72dB Low THD (0.02% typ @ VCC = 2.7V for channels 0 and 1) Extended Industrial Temperature Range: –40°C to 85°C Applications： Cell Phones PDAs MP3 players Portable Instrumentation Computer Peripherals Speaker Headset Switching Power Routing Relay Replacement Audio and Video Signal Routing PCMCIA Cards Modems |
| 描述与应用 | 低电压双单刀三掷模拟开关3:1复用/解复用总线开关 CMOS总线和模拟技术的应用 低导通电阻：0.5Ω（典型值）的通道0和1 1.65Ω（典型值）的通道2 控制输入过压容差：5.5V分钟。 高关断隔离：-42分贝 降低信号失真串扰抑制：-72dB通道 低总谐波失真（0.02％（典型值）@ VCC= 2.7V通道0和1） 扩展工业温度范围：-40°C至85°C 应用范围： 手机 掌上电脑 MP3播放器 便携式仪表 电脑周边 音箱耳机开关 电源布线 更换继电器 音频和视频信号路由 PCMCIA卡 调制解调器 |
