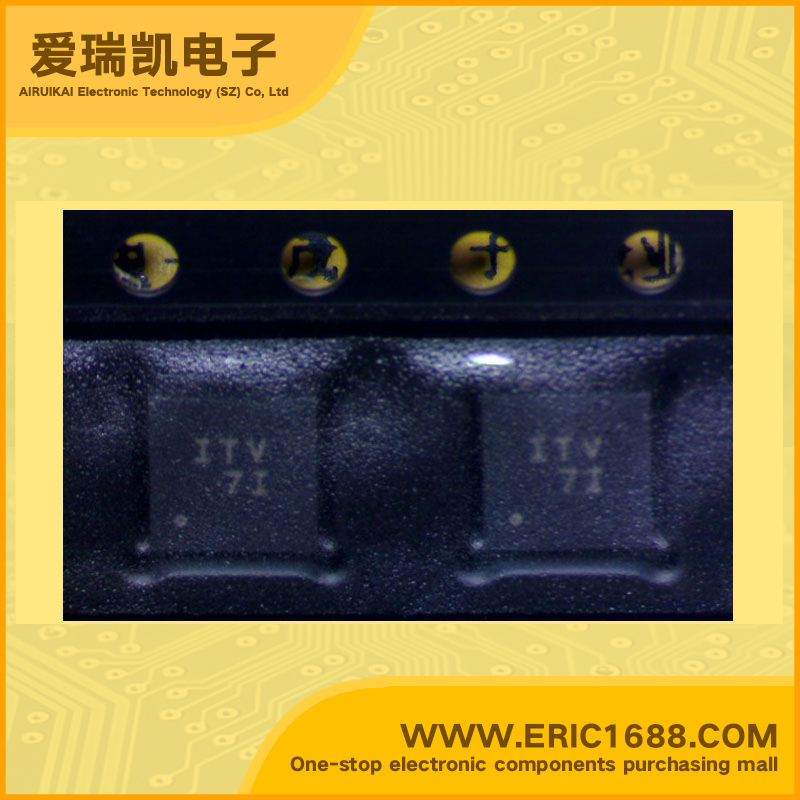

AAT3125ISN-T1 Charge Pump PMIC TDFN44-16 marking ITV USB OTG 5V Charge Pump
| 功能 Type | |
| 工作电压 Voltage - Supply | 2.7V ~ 5.5V |
| 输出电压 Out Voltage | 4.6V ~ 5.25V |
| 输出电流 Output Current | 100mA/0.1A |
| 效率 Efficiency(%) | 90% |
| 震荡频率 Oscillation Frequency | 750kHz |
| Description & Applications | FEATURES • USB OTG 5V Charge Pump • VIN Range: 2.7V to 5.5V • Regulated Fractional Charge Pump • 100mA Output Current • Reverse Load Protection • Power Good Flag • SRP Detection Flag • SRP Ready Flag • Output Short-Circuit and Thermal Protection • Under-Voltage Protection • Less than 1µA Consumed While Disabled • Designed to Allow Operation with Output Capacitance as Low as 3.3µF • 16-pin QFN44 Package • -40°C to +85°C Temperature Range Applications • Cell Phones • Hand-Held Computers • PDAs |
| 描述与应用 | 特点 •USB OTG5V电荷泵 •VIN范围：2.7V至5.5V •稳压分数充电泵 •100mA输出电流 •反向负载保护 •电源良好标记 •SRP探测标志 •SRP准备标志 •输出短路保护和热保护 •欠压保护 •小于1μA时消耗残疾人 •低至3.3μF输出电容的设计，让操作 •16引脚QFN44封装 •-40°C至+85°C温度范围 应用 •手机 •手持电脑 •掌上电脑 |
