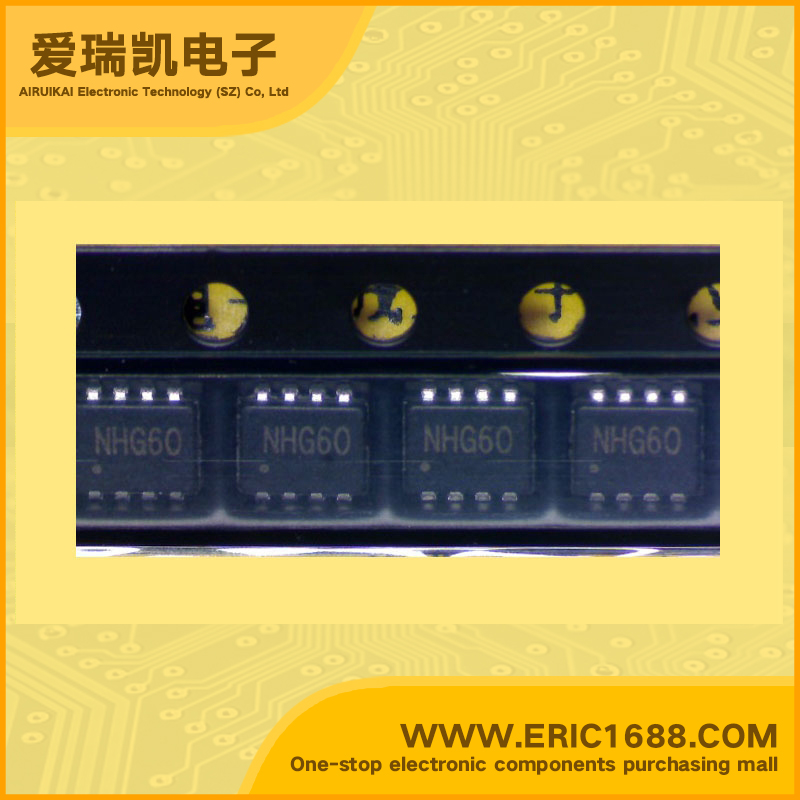

AAT3239ITS-1.8-T1 LDO Voltage Regulator 1.8V 700mV/0.7V With Enable Pin TSOPJW-8 marking NHG Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 6V |
| 输出电压VOUT Voltage - Output | 1.8V |
| 输出电流Io Current - Output | 300mA/0.3A |
| 最大压降VDO Voltage - Dropout | 700mV/0.7V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 667mW/0.667W |
| Description & Applications | 500mA MicroPower™ LDO ;•Low Dropout: 400mV at 300mA • Guaranteed 300mA Output • High Accuracy ±1.5% • 70µA Quiescent Current • High Power Supply Ripple Rejection • Power-OK (POK) Output • Fast Line and Load Transient Response • Short-Circuit Protection • Over-Temperature Protection • Uses Low Equivalent Series Resistance (ESR) Ceramic Capacitors • Shutdown Mode for Longer Battery Life • Low Temperature Coefficient • 13 Factory-Programmed Output Voltages • SOT23 6-Pin or SC70JW 8-Pin Package • Cellular Phones • Desktop Computers • Digital Cameras • Notebook Computers • Personal Portable Electronics • Portable Communication Devices |
| 描述与应用 | 500毫安微功率LDO;•低压差：400mV的在300mA •保证300mA输出 •高精度±1.5％ •70μA静态电流 •高电源纹波抑制 •电源就绪（POK）输出 •快速电压和负载瞬态响应 •短路保护 •过温保护 •使用低等效串联电阻 （ESR）陶瓷电容器 •关断模式，更长的电池寿命 •低温度系数 •13工厂编程输出电压 •SOT236引脚SC70JW8引脚封装 •蜂窝电话 •台式电脑 •数码相机 •笔记本电脑 •个人便携式电子产品 |
