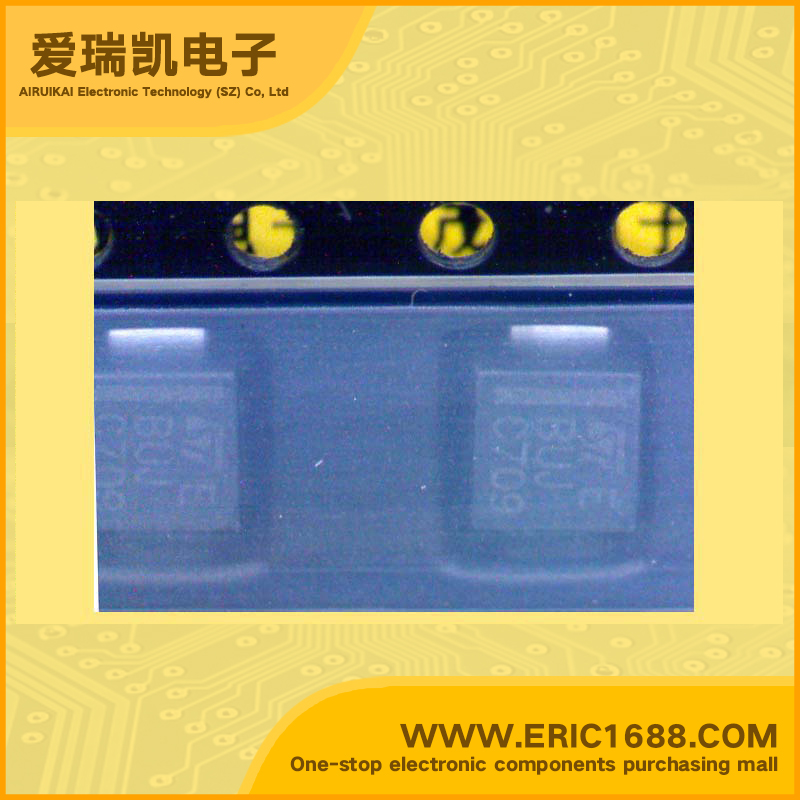

SMBJ24A-TR TVS/ESD 24V 16A 5W DO-214AA/SMB-24V marking BUJ
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 24V |
| 反向击穿电压VBR Breakdown Voltage | 26.7V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 600W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 16A |
| 额定耗散功率Pd Power dissipation | 5W |
| Description & Applications | FEATURES •PEAK PULSE POWER : 600 W (10/1000µs) •STAND OFF VOLTAGERANGE :From 5V to 188V. •UNI AND BIDIRECTIONAL TYPES •LOW CLAMPING FACTOR •FAST RESPONSE TIME •JEDEC REGISTERED PACKAGE OUTLINE |
| 描述与应用 | 特点 •峰值脉冲功率：600 W（10/1000μS） •STAND OFF VOLTAGERANGE的：从5V到188V。 •单向和双向类型 •低钳位因子 •快速的响应时间 •JEDEC的注册包装外形 |
