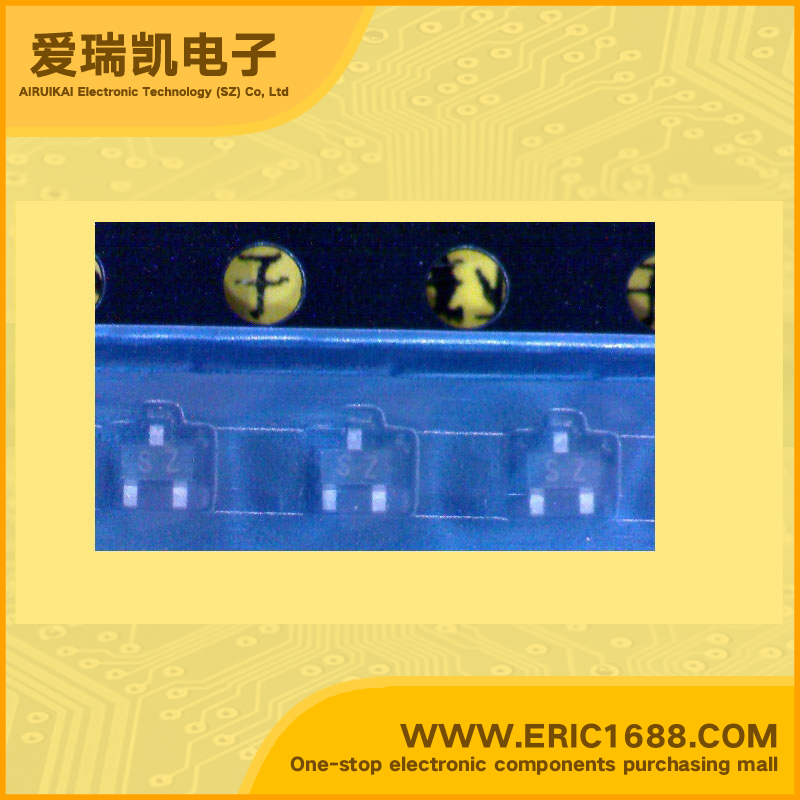

KTA2012E PNP transistors（BJT） -15V -500mA/-0.5A 260MHz 270~680 -250mV/-0.25V SOT-523/ESM marking SZ low collector saturation voltage
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -15V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -12V |
| 集电极连续输出电流IC Collector Current(IC) | −500mA/-0.5A |
| 截止频率fT Transtion Frequency(fT) | 260MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 270~680 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -250mV/-0.25V |
| 耗散功率Pc PoWer Dissipation | 100mW/0.1W |
| Description & Applications | PNP epitaxial planar transistor switching application Feature Large collector current Low Collector saturation voltage complementary to KTC4072E |
| 描述与应用 | PNP外延平面晶体管 切换应用程序 特点 大集电极电流 低集电极饱和度电压 互补型KTC4072E |
