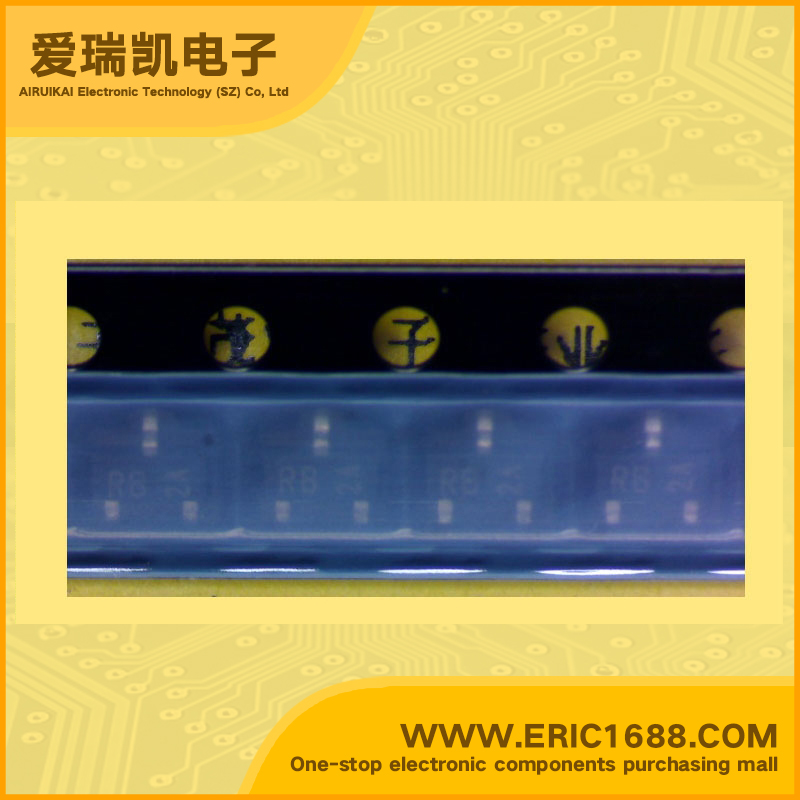

KTC3770S-B NPN Transistors(BJT) 20V 100mA/0.1A 7MHz 80~160 SOT-23/SC-59 marking RB VHF/UHF wide band amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 12V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 截止频率fT Transtion Frequency(fT) | 7MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 80~160 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | VHF/UHF WIDE BAND AMPLIFIER APPLICATION. FEATURES Low Noise Figure, High Gain. NF=1.1dB, |S21e|2 =11dB (f=4GHz). |
| 描述与应用 | VHF/ UHF宽频带放大器应用。 特点 低噪声系数，高增益。 NF=1.1分贝，S21E|2 =11分贝（六=4GHz的）。 |
