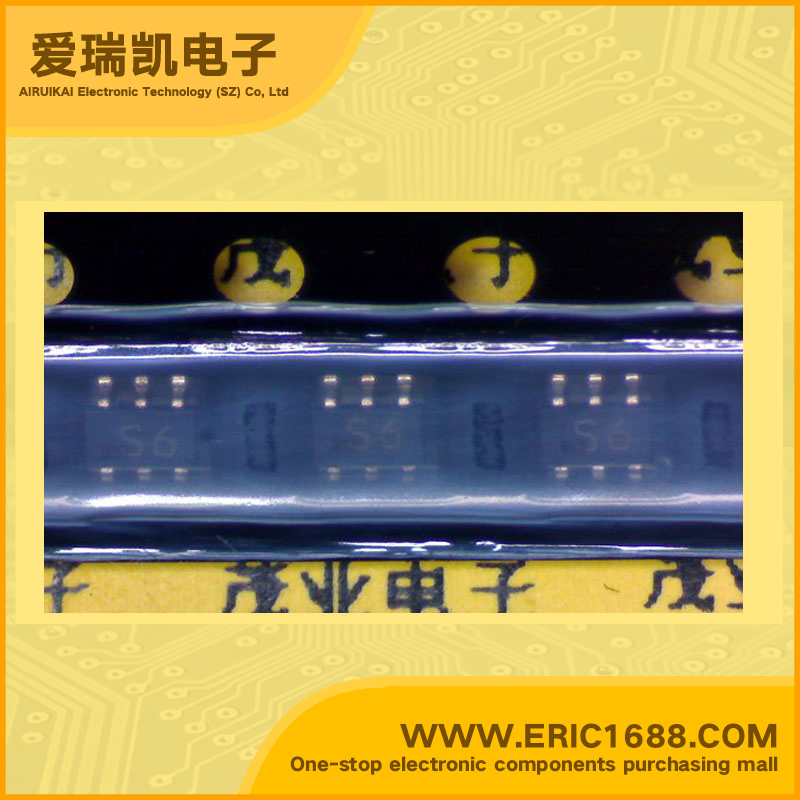

KTA701U-GR PNP+PNP Complex Bipolar Transistor -50V -150mA HEF=200~400 SOT-363/US6 marking S6 switch and digital circuit application
|
V(BR) CBO Collector-Base Voltage |
-50v |
|
V(BR) CEO Collector-Emitter Voltage |
-50v |
| Collector Current(IC) | -150ma/-0.15a |
| Transtion Frequency(fT) | 80mhz |
| DC Current Gain(hFE) | 200~400 |
|
VCE(sat) Collector-Emitter Saturation Voltage |
-0.3v |
| Power Dissipation (Pd) | 0.2w |
| Description & Applications | GENERAL PURPOSE APPLICATION.
SWITCHING APPLICATION.
FEATURES
A super-minimold package houses 2 transistor.
Excellent temperature response between these 2 transistor.
High pairing property in hFE.
The follwing characteristics are common for Q1, Q2.
|
